KT-102 Condenser Tube Cleaning Machine: Mechanical Descaling for Small-Diameter Heat Exchanger Tubes

If your cleaning projects primarily involve scale, rust deposits, and sediment removal from small-diameter heat exchanger tubes in central air conditioning condensers, chillers, and shell-and-tube heat exchangers—and you require equipment that can be frequently relocated and perform continuous tube-by-tube operation—then the KT-102 Condenser Tube Cleaning Machine is a mechanical descaling solution designed for professional cleaning applications. It features 550W power, 0–1400 rpm speed control, multi-specification cleaning shafts and brushes, a pull-rod mobility structure, and a 20 m quick-connect water hose.

In central air conditioning maintenance, condenser cleaning typically requires opening the end cover and treating each heat exchange tube individually. For professional cleaning companies, equipment mobility, shaft compatibility with tube diameter, brush suitability for deposit type, and operational continuity all directly impact cleaning efficiency.

The KT-102 is configured around these practical site requirements.

1. Which Projects Is the KT-102 Suitable For?

The KT-102 is suitable for projects requiring mechanical cleaning of small-diameter heat exchange tubes.

Typical applications include:

Central air conditioning condenser cleaning

Centrifugal chiller maintenance

Screw chiller maintenance

Shell-and-tube heat exchanger cleaning

Ground-source heat pump heat exchange tube maintenance

Certain marine oil cooler cleaning

Industrial cooling system heat exchange tube maintenance

These represent the primary application range of the KT-102.

If your primary business is central air conditioning water system cleaning and you frequently encounter large-scale tube-by-tube cleaning, the KT-102 is a well-matched equipment choice.

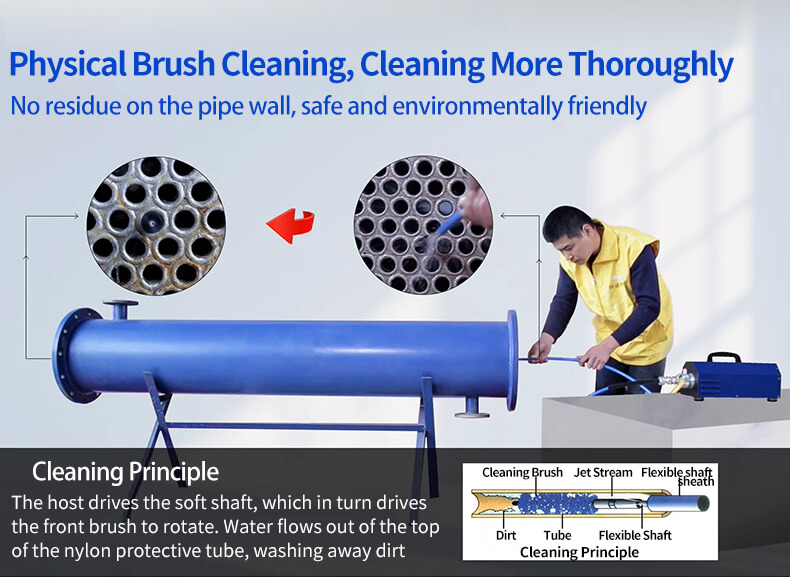

2. How Does the KT-102 Clean Heat Exchange Tubes?

The KT-102 is a flexible shaft mechanical brushing cleaning device.

During operation, a cleaning brush matching the tube diameter is installed at the front of the flexible shaft. After the shaft is connected to the power unit, the 550W motor drives the shaft and brush head to rotate.

After the brush head enters the heat exchange tube, it contacts the tube wall through rotation, gradually removing scale, rust deposits, and sediment.

Simultaneously, the 20 m quick-connect water hose can be connected for debris flushing.

The practical operation can be understood as:

Select brush → Connect shaft → Insert into tube → Start power unit → Rotary brushing → Flush with water → Evacuate debris

3. What Conditions Is 550W Power Suitable For?

The KT-102 features 550W power output.

For professional cleaning companies, power stability is critical when equipment is used long-term for continuous condenser tube cleaning.

The KT-102 uses a 550W motor to drive the shaft and cleaning brush for mechanical removal of scale, rust deposits, and sediment.

Compared with lower-power portable entry-level equipment, the KT-102 is better suited for professional project work and heavier scaling conditions.

4. What Is the Purpose of 0–1400 rpm Speed Control?

The KT-102 supports speed adjustment from 0 to 1400 rpm.

Different deposit levels, tube materials, and cleaning brushes may require different operating speeds in practice.

Therefore, operators can adjust working speed based on site conditions.

Routine maintenance – Use appropriate speed for lighter deposits.

Thicker scale – Increase speed and mechanical brushing intensity based on conditions.

Different brush sizes – Adjust speed according to brush specifications.

This speed control feature expands the equipment's applicability across different projects.

5. How to Select for 6.35–25.4 mm Tube Diameters?

The KT-102 is suitable for tube diameters of:

6.35–25.4 mm

The equipment can be configured with:

6 mm / 8 mm / 10 mm / 12 mm cleaning shafts

It also includes 6.5–25.4 mm cleaning brushes, with 10 pieces in the standard configuration.

Therefore, when purchasing equipment, you should not only consider the power unit model but also select shafts and brushes based on the actual condenser tube diameters you will be cleaning.

If your projects involve multiple tube diameters, the KT-102's multi-specification shaft configuration offers greater convenience

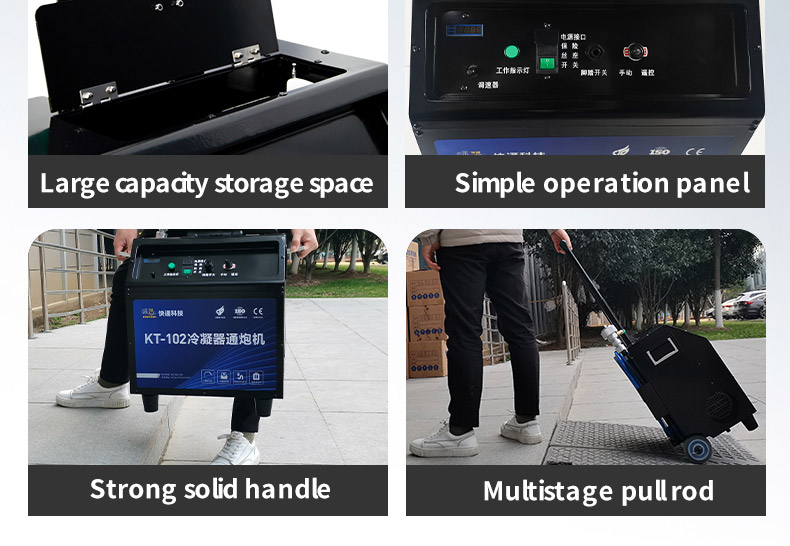

6. Why Does the KT-102 Feature a Pull-Rod Mobility Structure?

For central air conditioning cleaning companies, equipment frequently needs to be moved between different projects.

Even within the same project, equipment may need to be transferred between multiple chiller units.

The KT-102 power unit weighs 27.75 kg and features a pull-rod mobility structure, reducing the need for manual carrying.

Therefore, it is better suited for:

Central air conditioning maintenance companies + Professional cleaning companies + Multi-unit projects

These user types require frequent equipment relocation.

7. Foot Pedal Control for Continuous Operation

The KT-102 is equipped with a 3 m pneumatic foot switch.

When cleaning condensers, operators typically need both hands to control the flexible shaft—inserting, withdrawing, and moving the brush head.

Using a foot pedal to start and stop the equipment keeps both hands at the shaft operating position, which is more suitable for continuous tube-by-tube cleaning.

For professional operators who clean a large number of tubes daily, this configuration provides direct practical value.

8. Simultaneous Brushing and Flushing for Routine Water System Cleaning

The KT-102 is equipped with a 20 m quick-connect water hose.

During cleaning, after the brush removes tube wall deposits, water flow can flush loosened debris out.

Therefore, the equipment is not simply "dry brushing"—it enables a combined method of:

Mechanical brushing + Water flushing for debris evacuation

"Simultaneous cleaning and flushing" is one of the KT-102's key technical features.

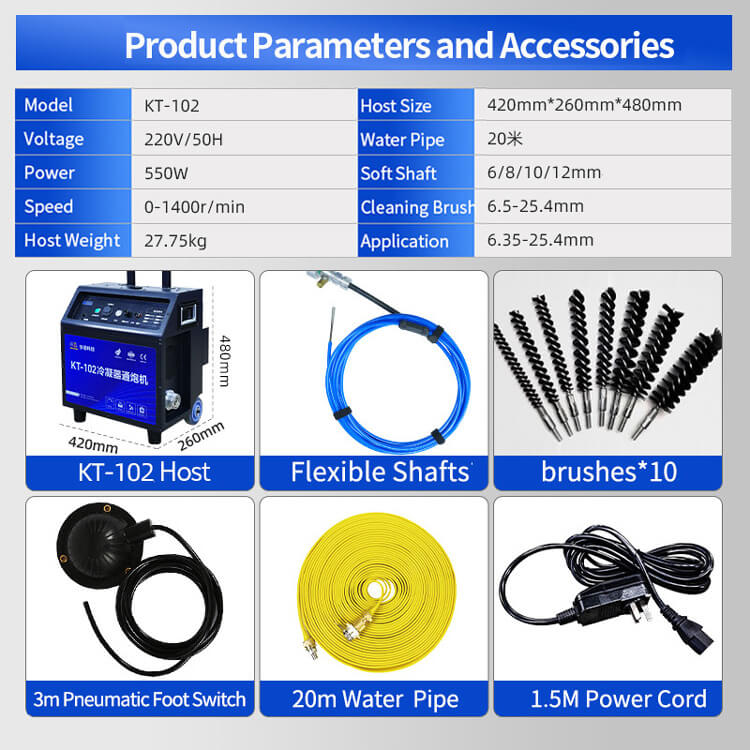

9. KT-102 Technical Specifications

Specifications based on KT-102 product documentation.

10. How Should Different Users Select the KT-102?

1. Central Air Conditioning Cleaning Companies
If your primary business is:
Condenser cleaning + Chiller maintenance + Tube-by-tube mechanical descaling
The KT-102 is a well-targeted equipment choice.

2. Central Air Conditioning Maintenance Companies
If a project involves multiple chiller units requiring frequent equipment relocation, the KT-102's pull-rod structure is more convenient.

3. Industrial Facility Equipment Departments
If the facility has multiple chillers, heat exchangers, or ground-source heat pump equipment, the KT-102 can be used for periodic heat exchange tube cleaning. Application scenarios exist in automotive manufacturing, electronics manufacturing, pharmaceutical, and other industrial heat exchange system maintenance.

4. Industrial Cleaning Service Providers
If client projects involve varying heat exchange tube diameters, multi-specification shafts and brushes reduce the need for completely different equipment sets between projects

11. What Is the Difference Between the KT-102 and Basic Portable Cleaning Equipment?

From a practical selection perspective, the KT-102 strengthens several key aspects:

The main differences from basic portable models are power, mobility, shaft options, and speed range—making the KT-103 more suitable for professional cleaning companies with high-frequency, multi-project operations.

12. KT-102 Practical Application Scenarios

The KT-102 is not limited to any specific central air conditioning brand or chiller type.

As long as tube dimensions and site conditions fall within the equipment's applicable range, corresponding shafts and brushes can be selected based on site conditions.

Typical scenarios include:

Commercial Complexes
After long-term operation of shopping mall chillers, scale, slime, and other deposits accumulate inside condenser copper tubes and require tube-by-tube treatment during maintenance periods.

Large Public Venues
Multiple chiller units with limited maintenance windows require portable equipment for continuous heat exchange tube cleaning.

Telecommunications and Data Facilities
Cooling equipment operates continuously with high demands on condenser heat exchange performance, requiring periodic tube bundle maintenance.

13. 5 Items to Confirm Before Purchasing the KT-102

To avoid mismatched equipment selection, customers are advised to confirm the following before purchase:

① Heat exchange tube diameter
The KT-102 is suitable for 6.35–25.4 mm.

② Deposit type
Primarily identify whether deposits are scale, rust, slime, or other sediments.

③ Deposit thickness
Light scaling and heavy scaling require different cleaning tools.

④ Number of heat exchange tubes
If a large number of tubes require treatment daily, continuous operation convenience should be prioritized.

⑤ Frequency of relocation
If equipment needs to be moved between multiple units frequently, the pull-rod structure offers advantages.

14. Frequently Asked Questions (FAQ)

Q: Is the KT-102 for dry cleaning or water cleaning?
A: The KT-102 primarily uses mechanical brushing and is equipped with a 20 m quick-connect water hose for simultaneous flushing.

Q: Can the KT-102 clean central air conditioning condensers?
A: Yes. Central air conditioning condenser and chiller tube cleaning is one of the KT-102's primary applications.

Q: What is the applicable tube diameter range for the KT-102?
A: 6.35–25.4 mm.

Q: How many shaft sizes are available for the KT-102?
A: 6 mm, 8 mm, 10 mm, and 12 mm shafts can be configured.

Q: What is the power rating of the KT-102?
A: The power unit is rated at 550W.

Q: Is the KT-102 suitable for personal use?
A: The equipment operation is relatively straightforward, but its positioning is more toward professional central air conditioning maintenance, industrial cleaning, and heat exchange equipment maintenance projects. For individual users with occasional use, purchase necessity should be determined based on actual workload and tube diameter requirements.

Q: Can the KT-102 handle completely blocked hard scale?
A: The KT-102 is primarily positioned for mechanical brushing of condensers and heat exchange tubes, suitable for scale, rust deposits, and sediment—routine heat exchange tube fouling. If tubes are completely blocked with hard scale or industrial tube bundle hard deposits, higher-power industrial pipe unclogging equipment should be selected based on blockage severity, rather than relying solely on condenser brushing equipment.

About Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd.

Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd. specializes in the R&D and manufacturing of pipeline cleaning and unclogging equipment, with products covering central air conditioning cleaning equipment,tube celaner、industrial pipe unclogging machines, boiler pipe cleaning equipment, and pipeline inspection equipment. The company has been recognized as a National High-Tech Enterprise, a Technology-Based SME, and a Training Base of the China Industrial Cleaning Association. Our products are certified under ISO 9001 Quality Management System and EU CE certification.

For central air conditioning condenser, chiller, and small-diameter heat exchange tube cleaning requirements, the KT-102 features 550W power, 0–1400 rpm speed control, multi-specification shafts, cleaning brushes, simultaneous flushing, and a pull-rod mobility structure—making it more suitable for professional cleaning companies and central air conditioning maintenance personnel performing continuous heat exchange tube cleaning operations.

This document is compiled by the technical team of Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd.
