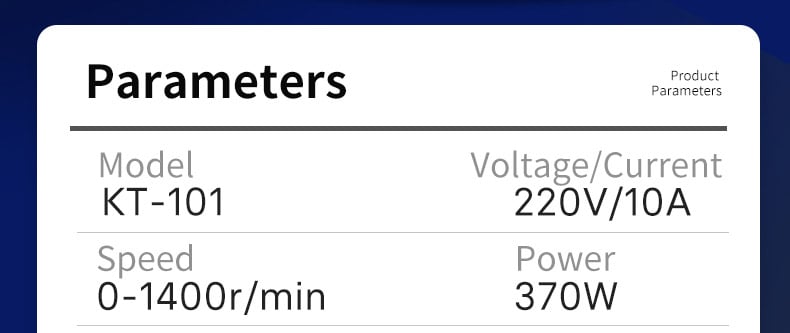

| Technical Data Sheet | |
| Model no. | KT-101 |
| Name | Tube cleaner |
| Voltage | 220-240V/110-120V |
| Power | 370W |
| Brush speed | 0-1400rpm, stepless adjustable |
| Flexible shaft | 6/8/10/12mm*7.6m (customizable ) |
| Weight | 13KG |
| Size | 350*200*170mm |

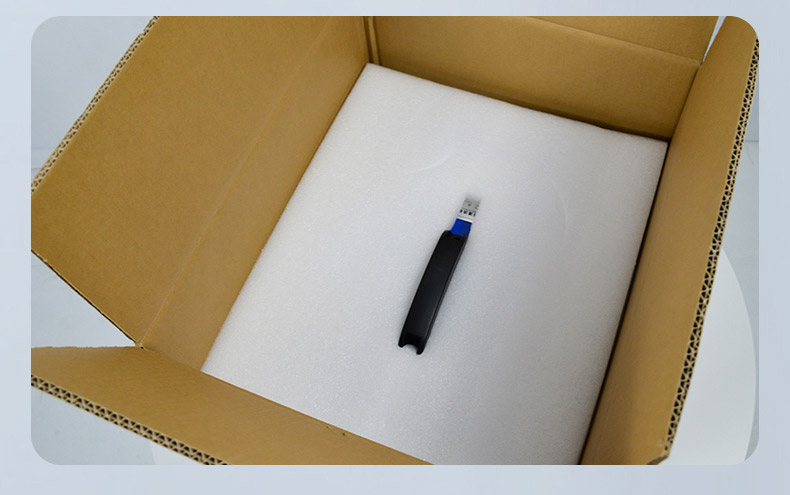

| Package | Export standard package |

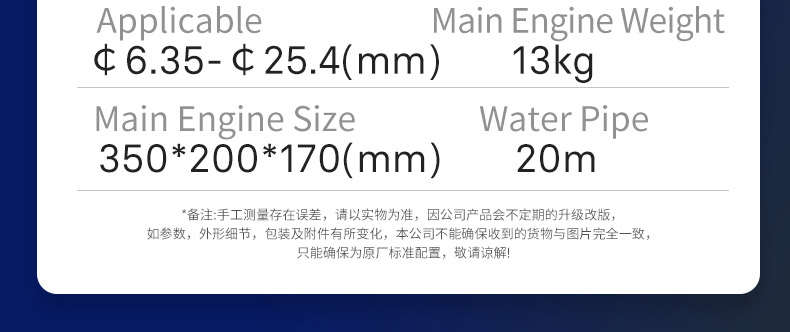

| Applicable |
6.35-25.4mm tube range |

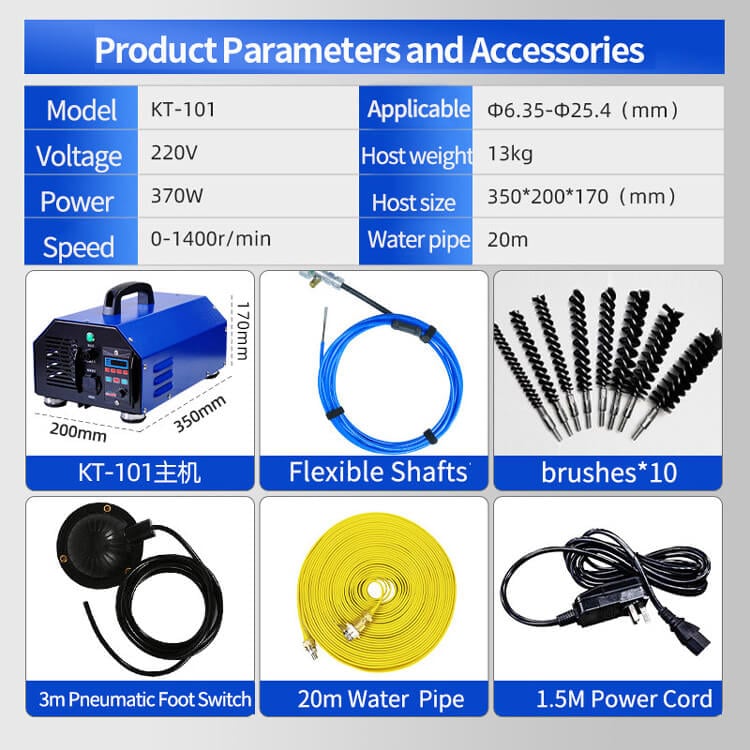

| PackingList |

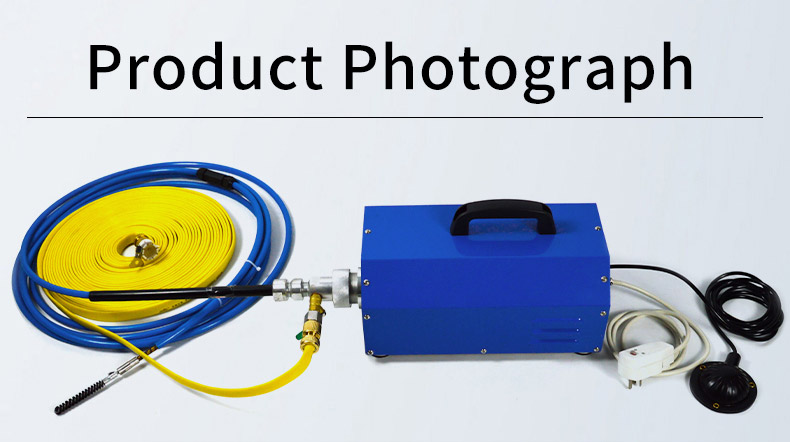

Main unit: 1pc Flexible shaft: 7.6m*1pc Brush: 10pcs Water pipe: 20m*1pc Foot switch: 1pc |
| Advantages |
1.Water is inlet on shaft directly to protect the main unit from water 2.Speed is stepless adjustable 3.Brushing with water jetting 4.Foot switch 5.Portable design |
Description:

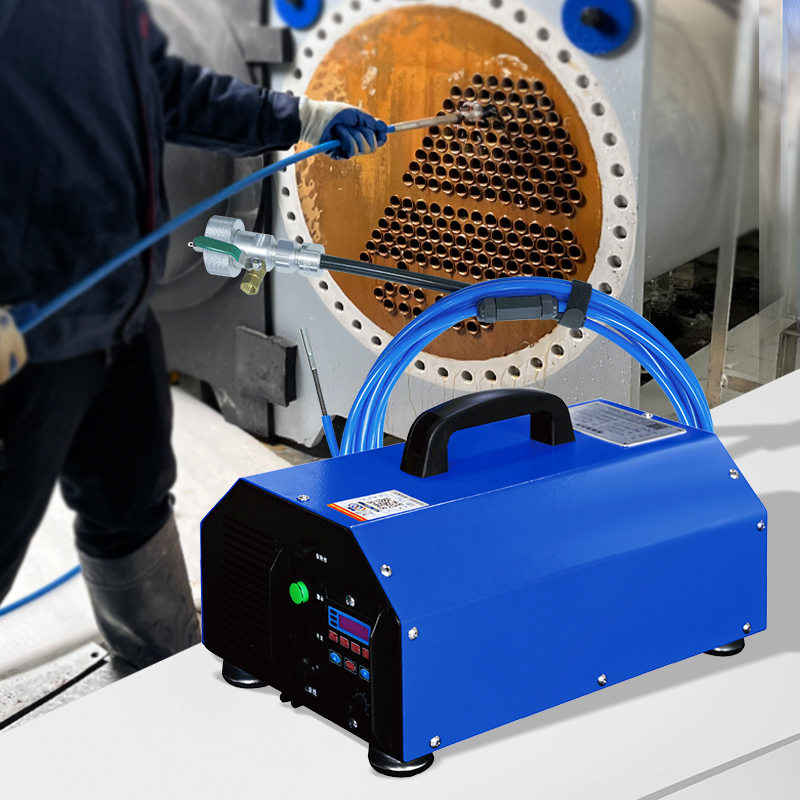

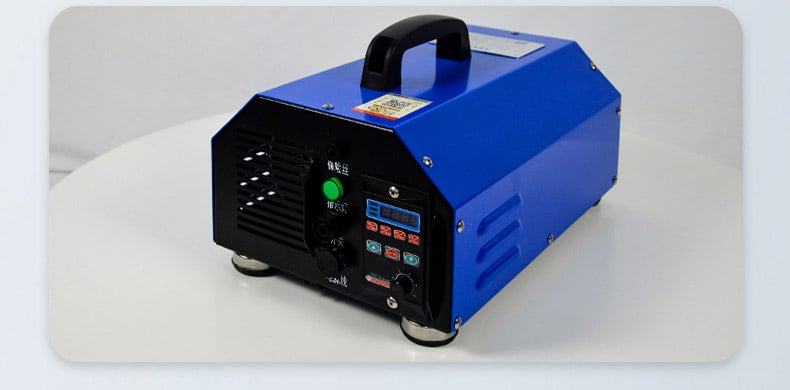

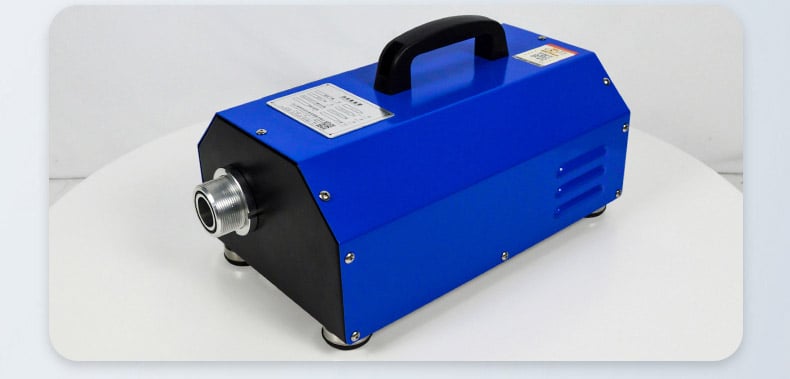

KT-101 is suitable forwatertreatment in all kinds of tubes, and also suitable to the rust and scale removal in condensers,chillersand other heat exchange tubes. The lightweight design makes the product easy to carry.

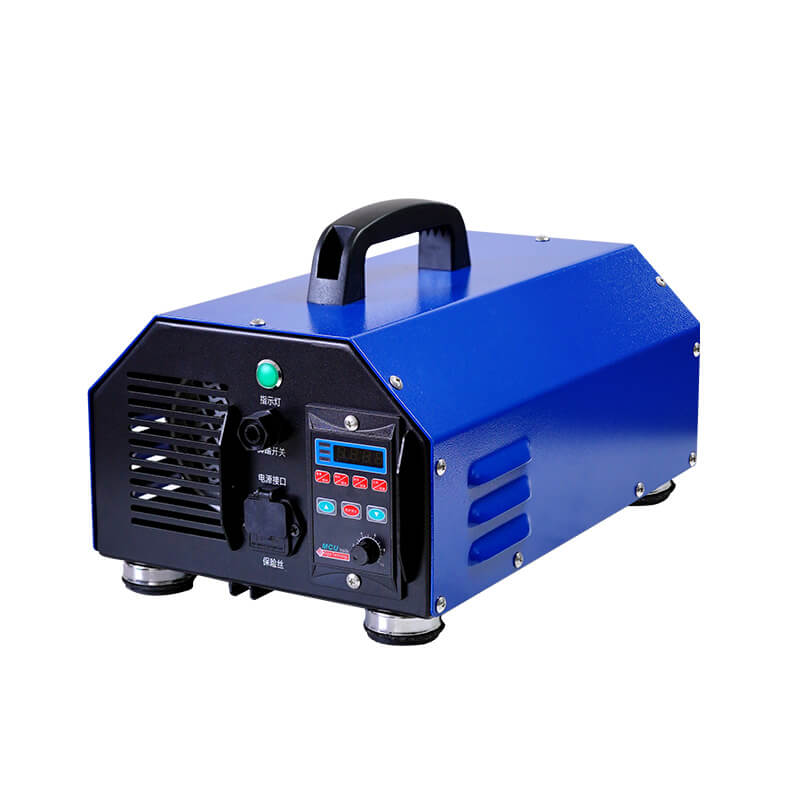

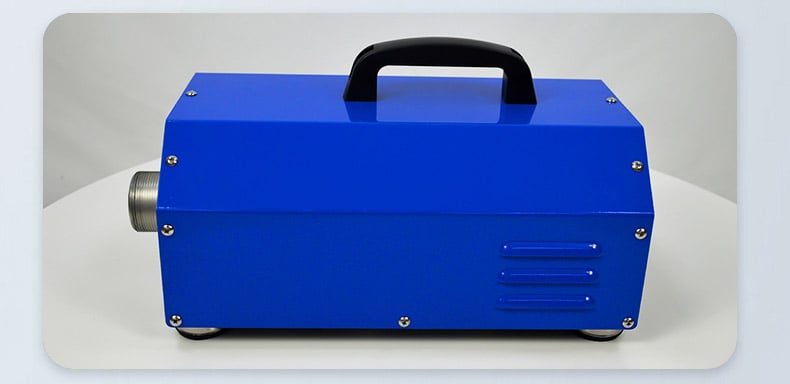

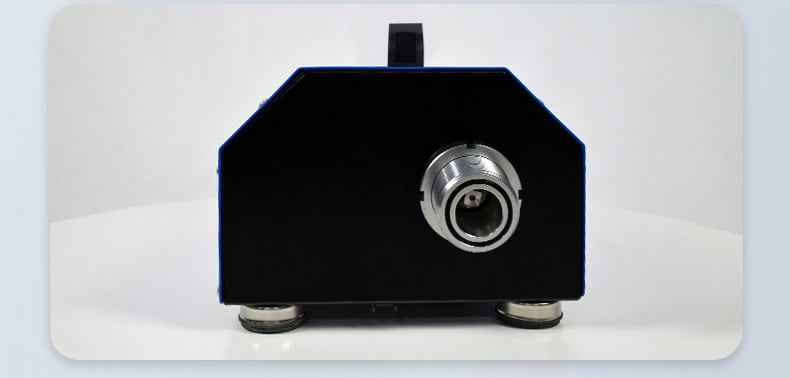

Condenser cleaning machine：KT-101Portable tube cleaner（Basic model）

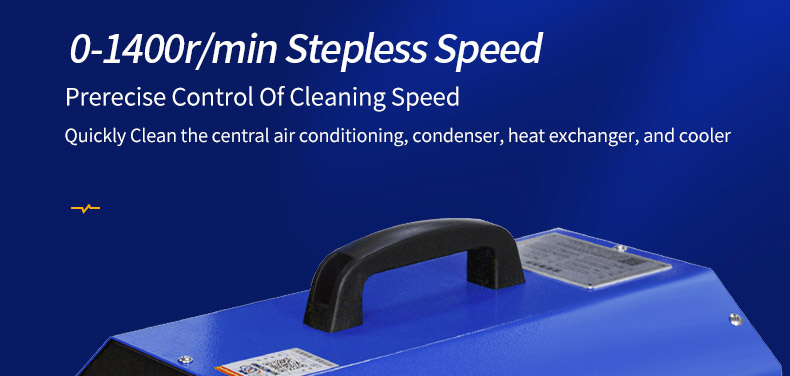

0-1400r/min Stepless speed;Precise control of cleaning speed;Quickly clean the central air conditioning, condenser, heat exchanger, and cooler

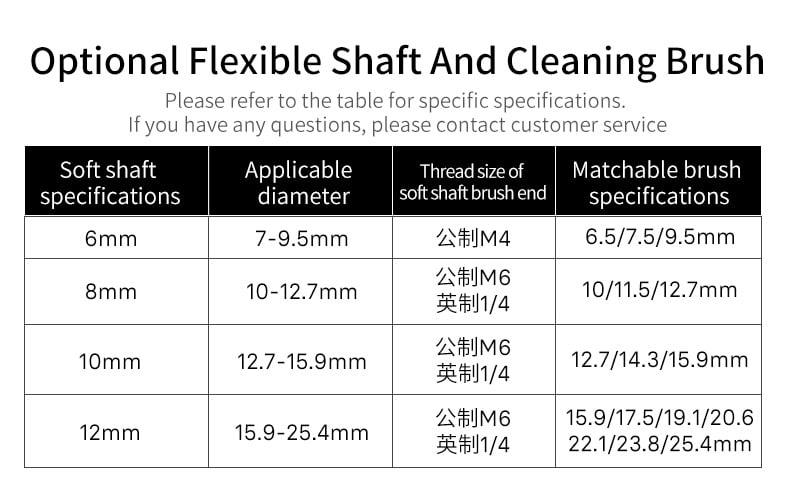

Optional flexible shaft and cleaning brush:Please refer to the table for specific specifications. If you have any questions, please contact customer service
1.Soft shaft specifications(Outer diameter of protective tube) 2.Applicable pipe diameter
3.Thread size of soft shaft brush end 4.Matchable cleaning brush specifications
Physical brush cleaning, cleaning more thoroughly
No residue on the pipe wall, safe and environmentally friendly
Cleaning principle：
The host drives the soft shaft, which in turn drives the front brush to rotate. Water flows out of the top of the soft shaft through a nylon protective tube, washing away dirt

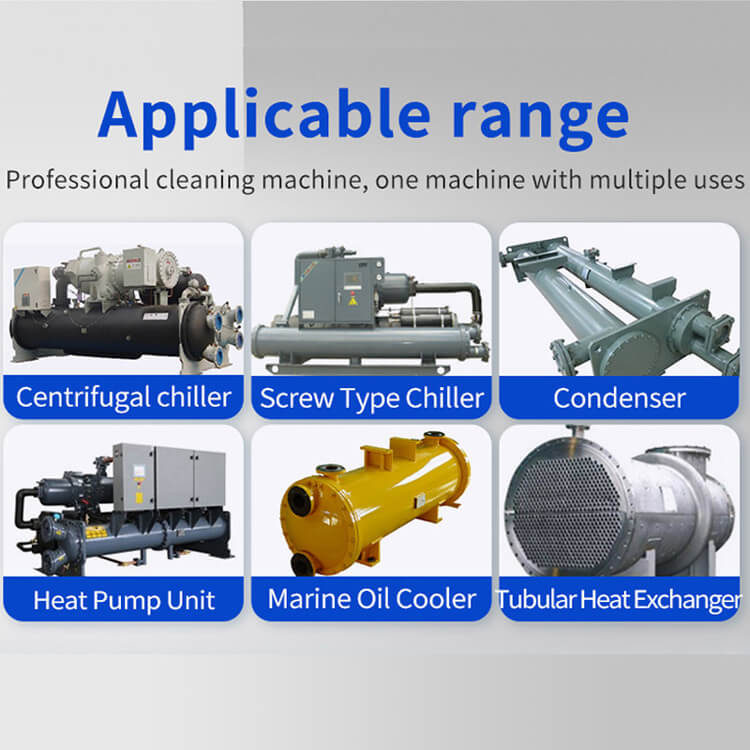

Applicable range——Professional cleaning machine, one machine with multiple uses
Centrifugal chiller；Screw type chiller ；condenser
Ground source heat pump unit；Marine oil cooler Tubular；heat exchanger

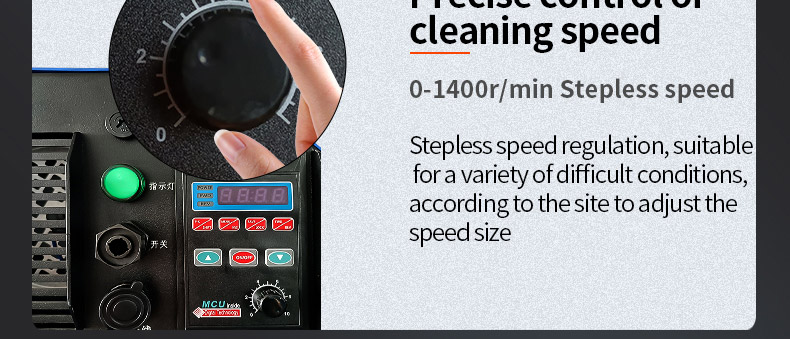

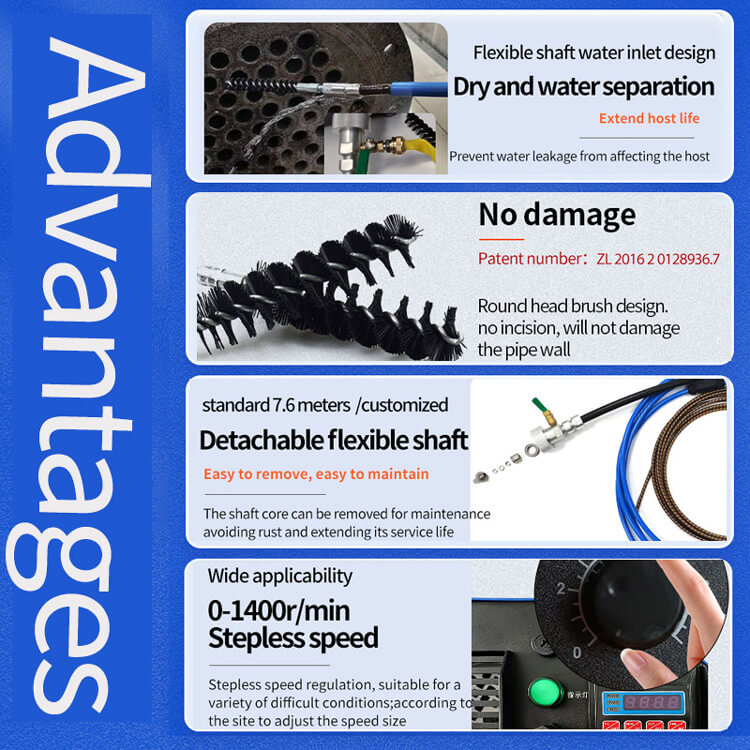

Precise control of cleaning rhythm:0-1400R/min Stepless speed;Stepless speed regulation, suitable for a variety of difficult conditions, according to the site to adjust the speed size

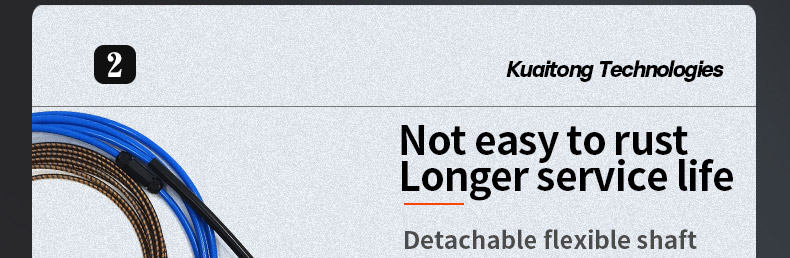

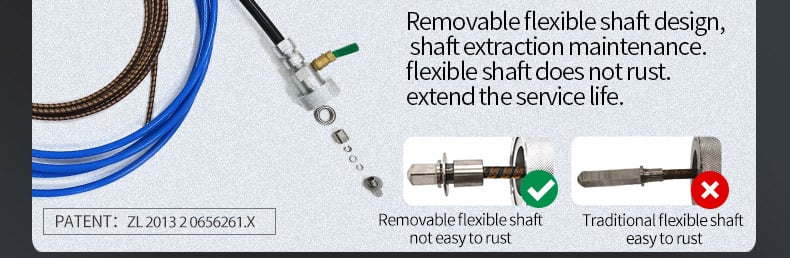

Not easy to rust longer service life：Detachable flexible shaft；Removable flexible shaft design, shaft extraction maintenance, flexible shaft does not rust, extend the service life

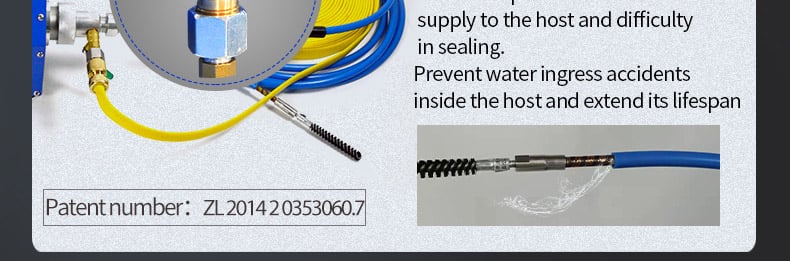

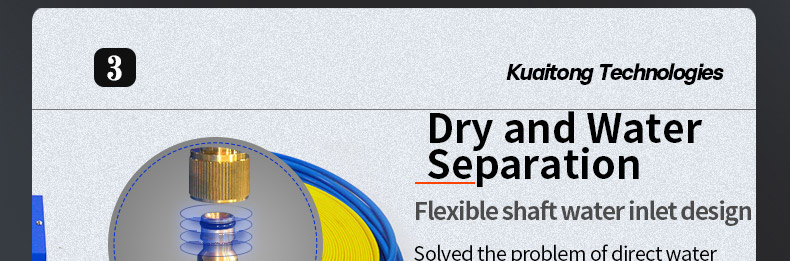

Dry and water separation：Flexible shaft water inlet design，Extend host life；Solved the problem of direct water supply to the host and difficulty in sealing. Prevent water ingress accidents inside the host and extend its lifespan

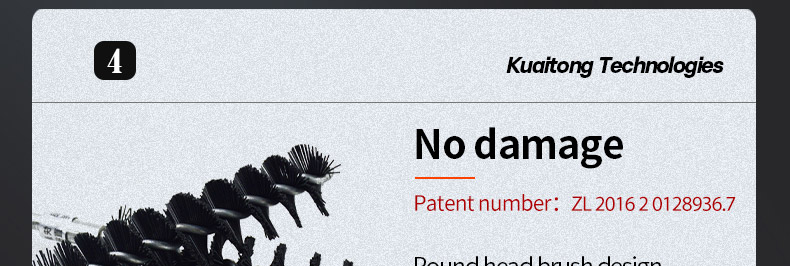

No damage to the tube wall：Round head brush design, no incision, will not damage the pipe wall

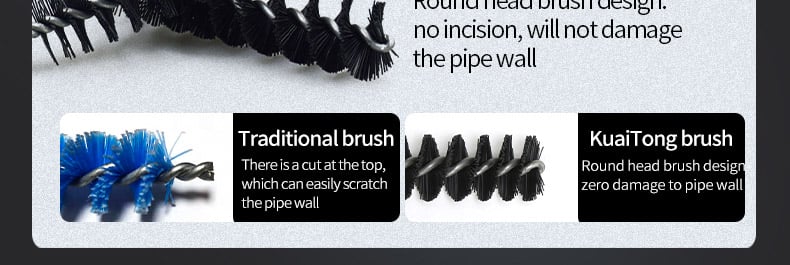

Traditional brush：There is a cut at the top, which can easily scratch the pipe wall
KuaiTong brush：Round head brush design, zero damage to pipe wall
Competitive Advantage:
1. Compact, portable and lightweight design makes it easy to carry by one person.
2. Brush speed is stepless adjustment to improve the cleaning speed. Applicable to wider range of working conditions.
3. Spray water while brushing, have a better cleaning effect.
4. Water is inlet on the shaft to protect the main unit from corrosion.
5. The machine can be connected with diffent sizes of flexible shaft and brush, so as to apply to wide range of working conditions.
6. Pedal Pneumatic switch control in order to avoid electric shock during operating.
Founded in 2009, Anhui Kuaitong is specialized in designing, producing and sales of air duct cleaning machines, kitchen exhaust cleaning machines, tube cleaner machines, boiler tube cleaners, heat exchanger tube cleaners, accessories and other industrial pipe cleaning machines over a decade and keeping up to meet customer demands all the time.
Our customer includes and not limited to building and device maintenance companies, heating system, ventilation system, central air conditioning, chemical industry, petrochemical industry, power plant, manufacturing company, food processing industry, transportation and distribution system, paper industry, ship industry, maritime industry etc.
Anhui Kuaitong is committed to the development of domestic and foreign markets, products are exported to 58 countries and regions in the world. The products are CE certified and gained the consistent recognition and praise by our customers.
15 years of high-tech enterprises in China:ISO9001 certification and EU CE certification
Q: Are you trading company or manufacturer?
A: We are professional manufacturer, all of our machines are designed and produced in our own workshop. And we trade our products with our clients directly.
Q: Can you do OEM ?
A: Yes, OEM is acceptable.
Q: How many different types of products your company manufactures?
A: Now we mainly produce kinds of air duct cleaning machines, kitchen exhaust cleaning machines, tube cleaners etc.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: We don’t have MOQ, since we are factory and most of machines are available in stock.
Q: How long is your delivery time?
A: The general delivery time is 3-15 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 1-2 days.
Q: What is your term of payment?
A: TT, credit card, western union, Paypal etc.
Q: Which certificate do you have?
A: CE.
