KT-965 Professional CCTV Pipeline Inspection Robot System for 260–3000 mm Pipes

1.Fits DN260-DN3000mm pipes; 120mm electric lift; Dual-motor 4WD; climbs up to 45°.

2.Front 2.1MP + Rear 5MP cameras; 10x optical zoom; 360° pan & 180° tilt PTZ; bright LED lights.

3.IP68 waterproof; touchscreen control; supports one-click export of professional inspection reports.

4.100m Kevlar cable standard (up to 500m); auto winding; ±0.01m accurate meter counter.

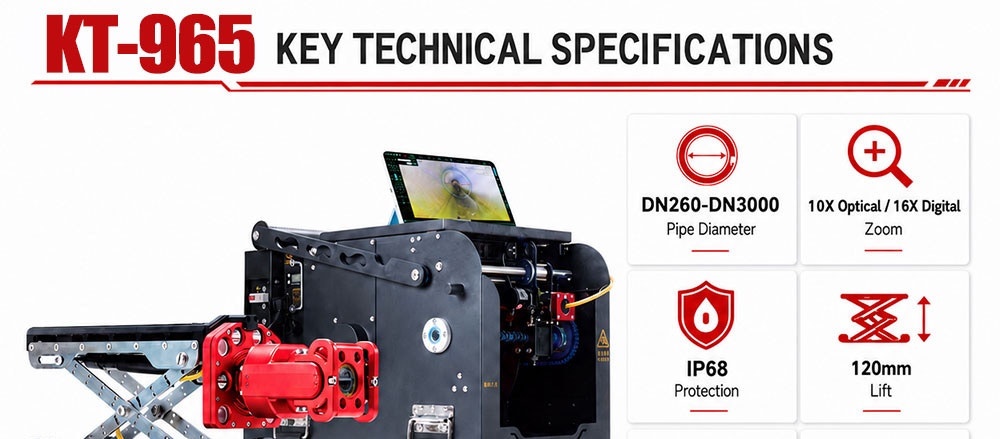

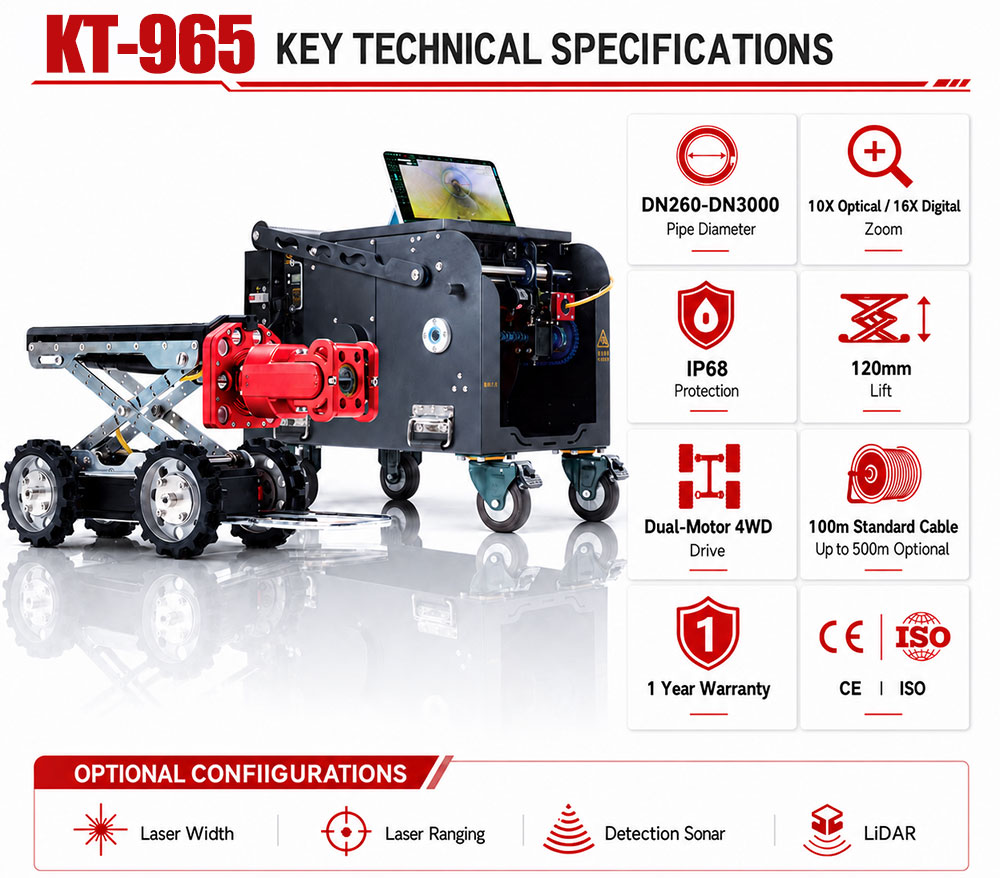

KT-965 KEY TECHNICAL SPECIFICATIONS

• DN260-DN3000 Pipe Diameter

• 10X Optical / 16X Digital Zoom| IP68 Protection

• 120mm Lift| Dual-Motor 4WD Drive

• 100m Standard Cable (Up to 500m Optional)

• 1 Year Warranty

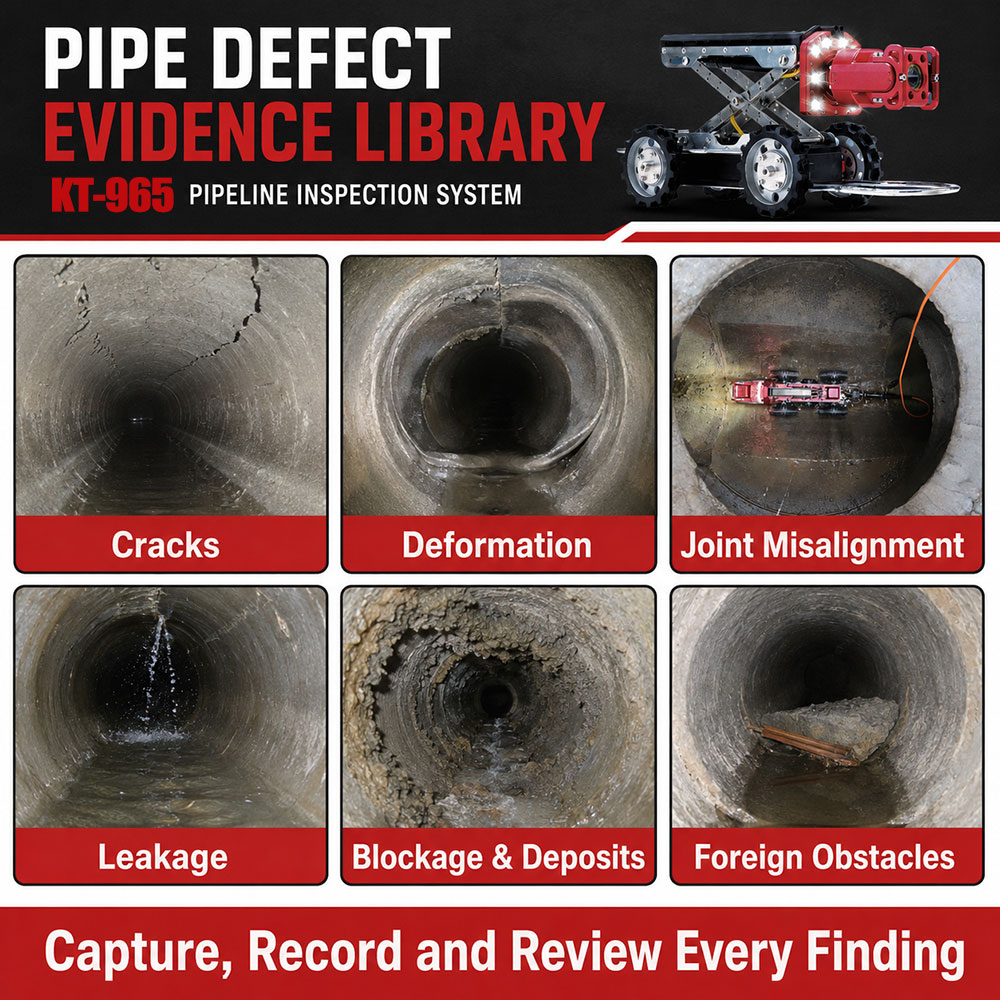

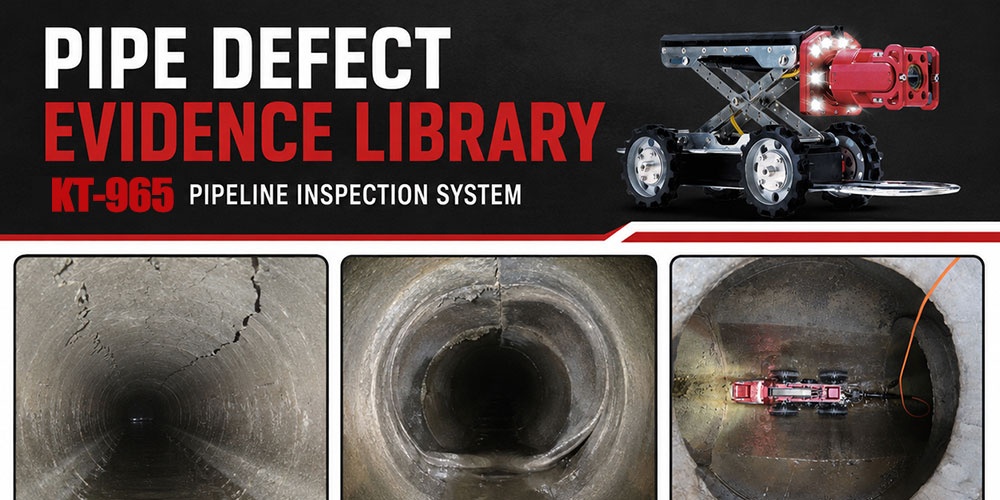

PIPE DEFECT EVIDENCE LIBRARY
KT-965 PIPELINE INSPECTION SYSTEM

Defect Types:Cracks| Deformation| Joint Misalignment| Leakage| Blockage & Deposits| Foreign Obstacles

Capture, Record and Review Every Finding

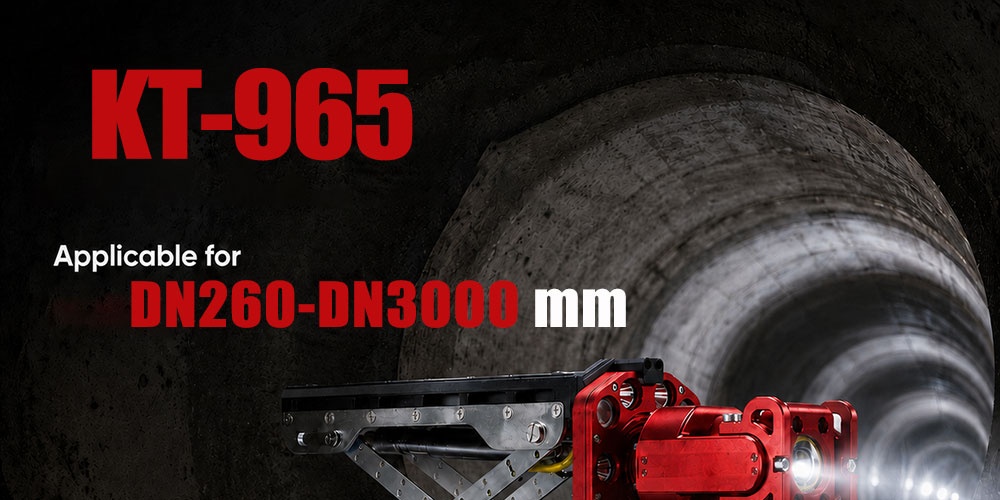

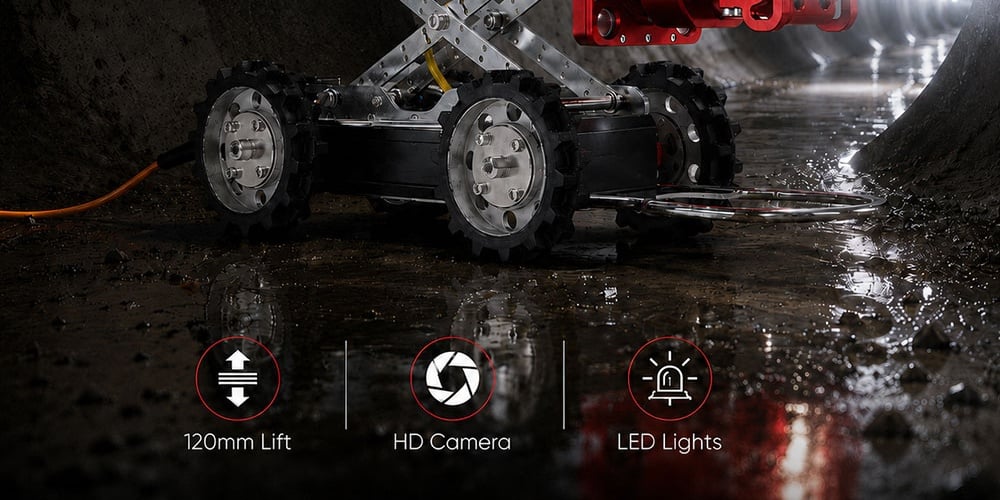

Applicable for DN260-DN3000 mm

120mm Lift| HD Camera| LED Lights

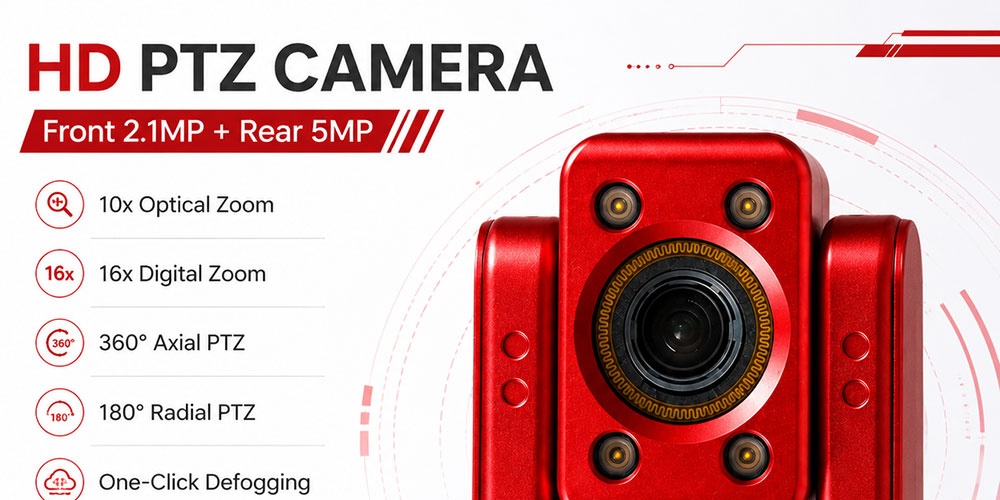

HD PTZ CAMERA

Front 2.1MP + Rear 5MP

• 10x Optical Zoom| 16x Digital Zoom| 360° Axial PTZ| 180° Radial PTZ| One-Click Defogging

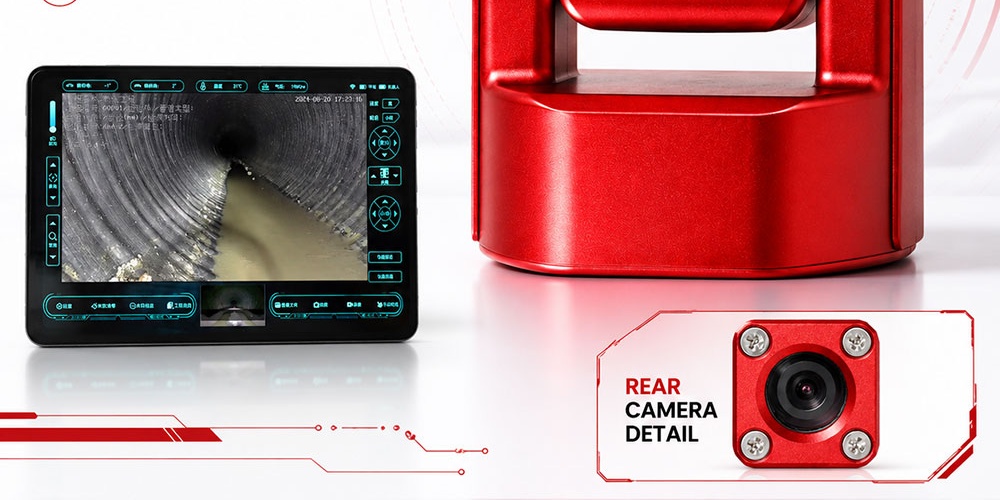

        REAR CAMERA DETAIL

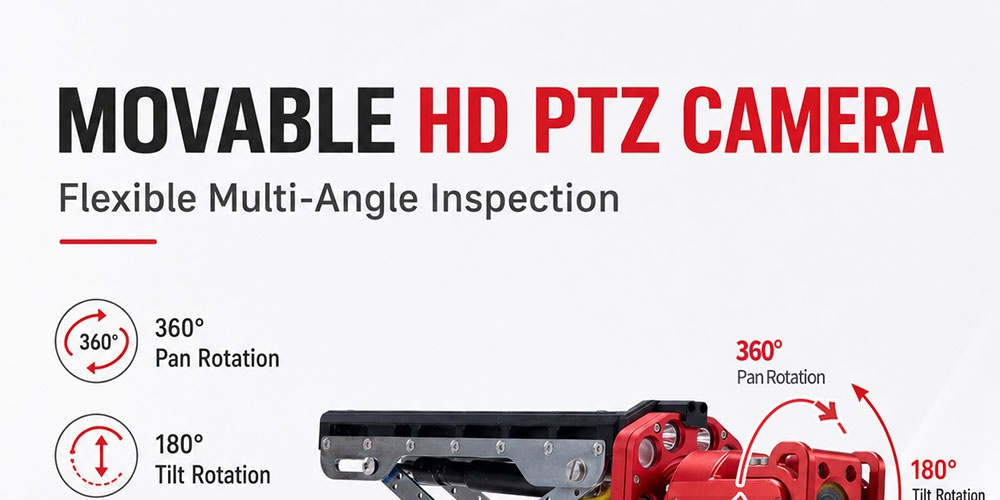

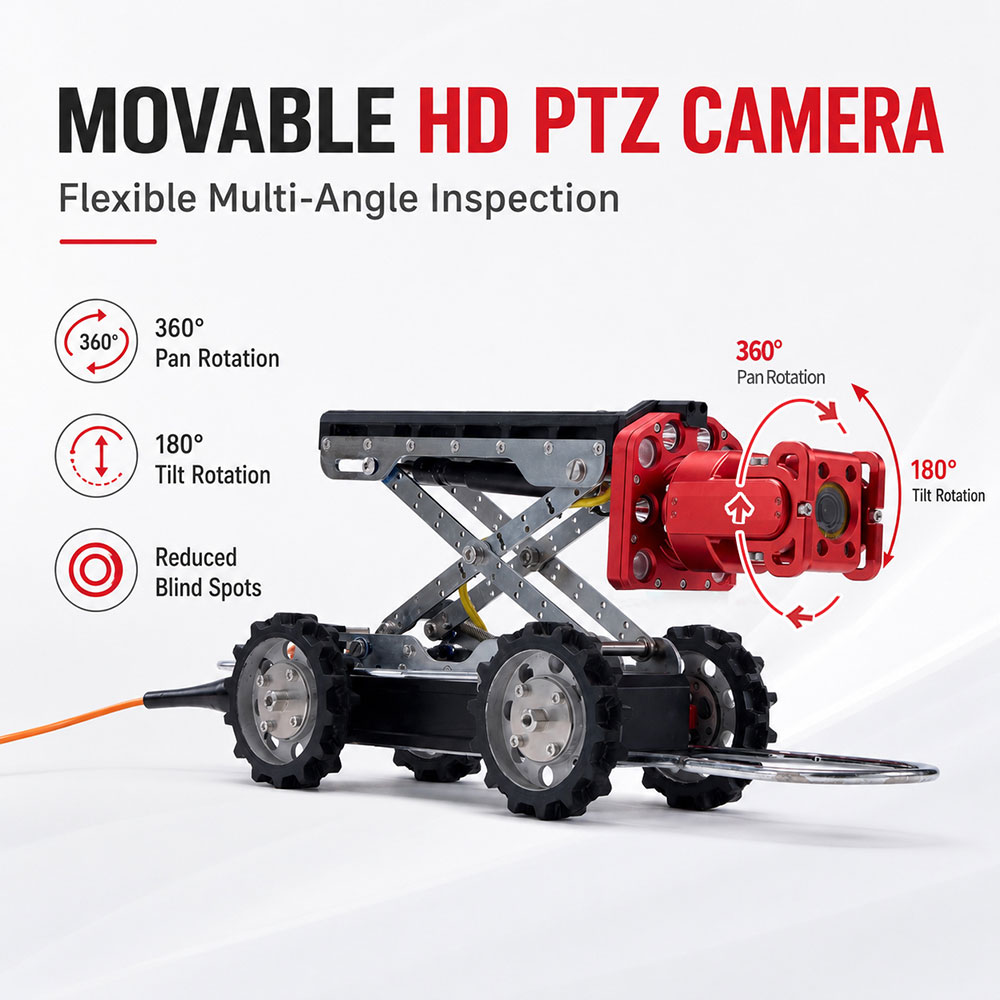

MOVABLE HD PTZ CAMERA

Flexible Multi-Angle Inspection

Features:

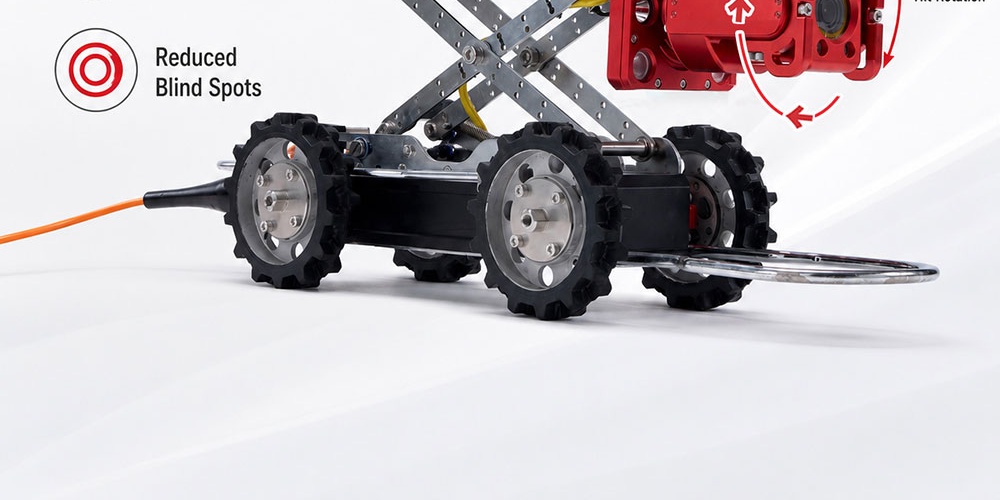

• 360° Pan Rotation| 180° Tilt Rotation| Reduced Blind Spots

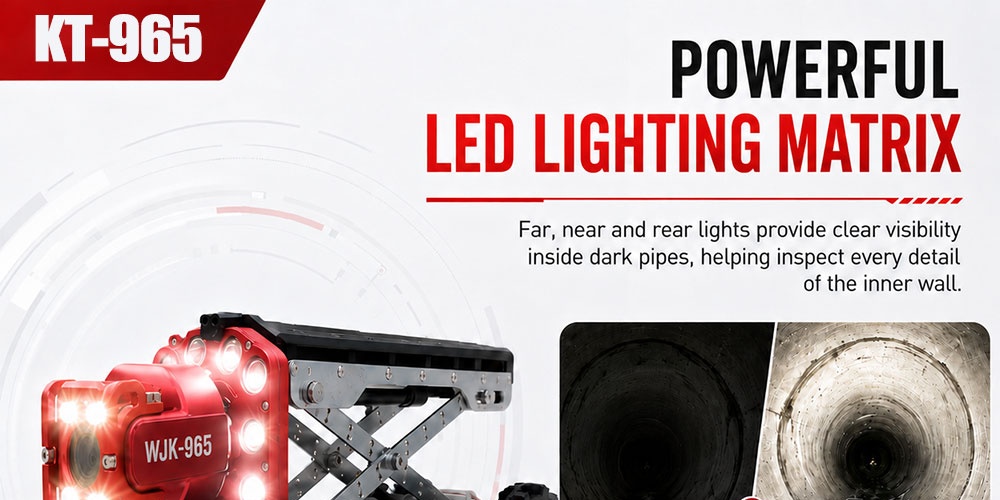

POWERFUL LED LIGHTING MATRIX

• Far, near and rear lights provide clear visibility inside dark pipes, helping inspect every detail of the inner wall.

Lighting Configuration:

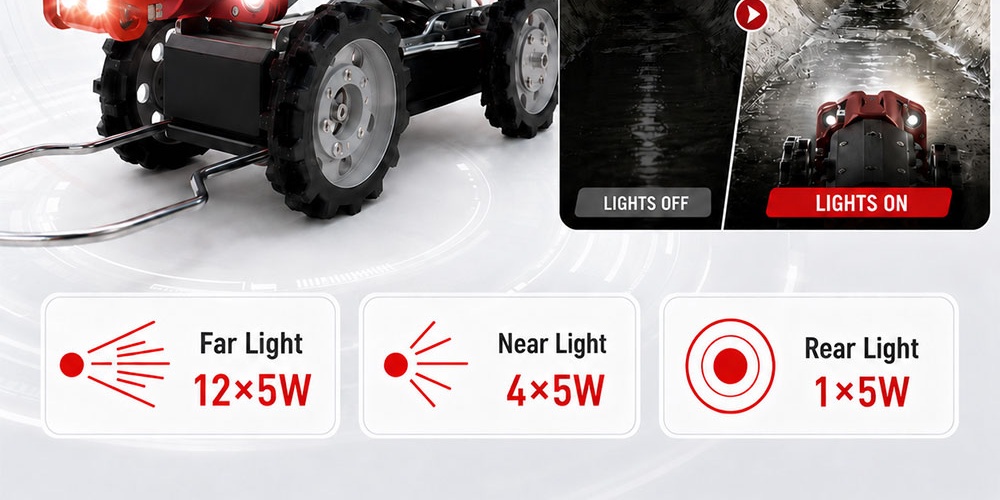

• Far Light: 12×5W| Near Light: 4×5W| Rear Light: 1×5W

Comparison:

• LIGHTS OFF| LIGHTS ON

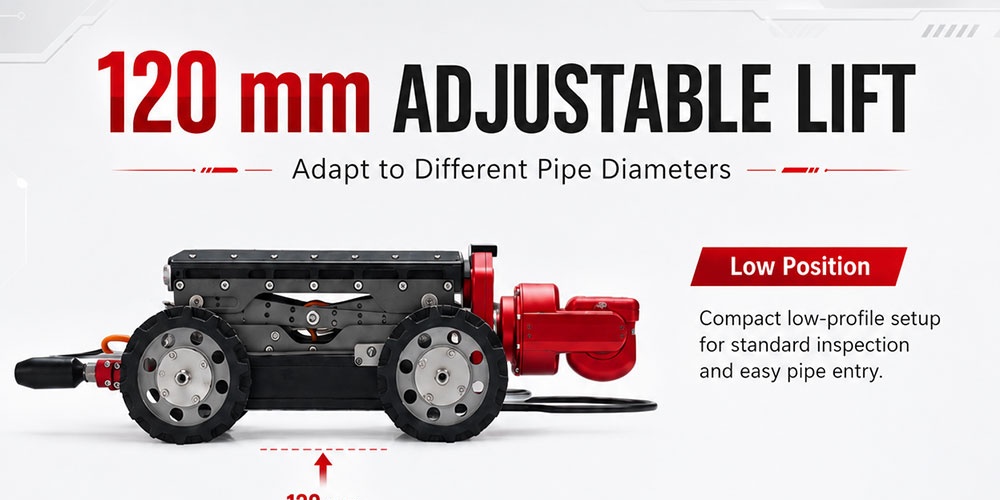

120 mm ADJUSTABLE LIFT

Adapt to Different Pipe Diameters

Position Options:

• Low Position

  • Compact low-profile setup for standard inspection and easy pipe entry.

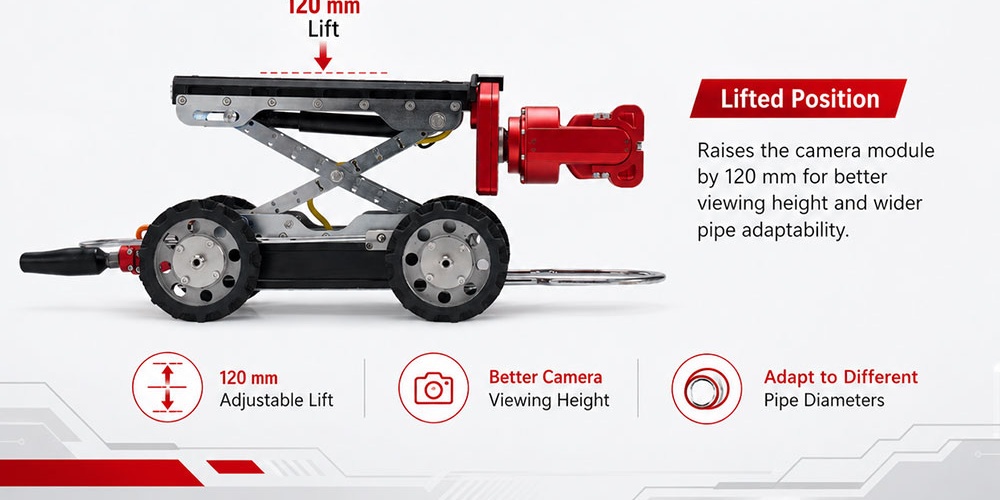

• Lifted Position

  • Raises the camera module by 120 mm for better viewing height and wider pipe adaptability.

Key Selling Points:

• 120 mm Adjustable Lift| Better Camera Viewing Height| Adapt to Different Pipe Diameters

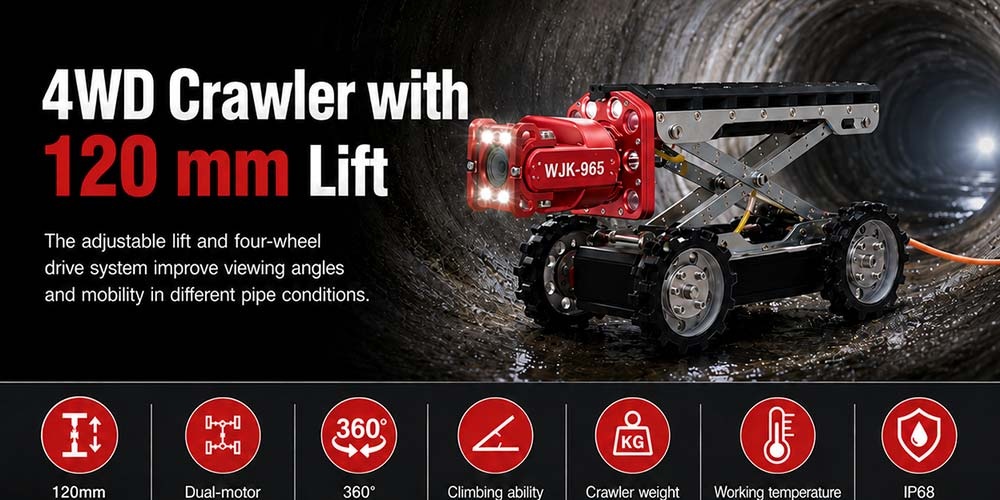

4WD Crawler with 120 mm Lift

The adjustable lift and four-wheel drive system improve viewing angles and mobility in different pipe conditions.

Key Specifications:

• 120mm lift height| Dual-motor four-wheel drive| 360° Pivot turn

• Climbing ability ≤45°| Crawler weight 14kg| Working temperature -20°C~55°C

• IP68 protection

Features:

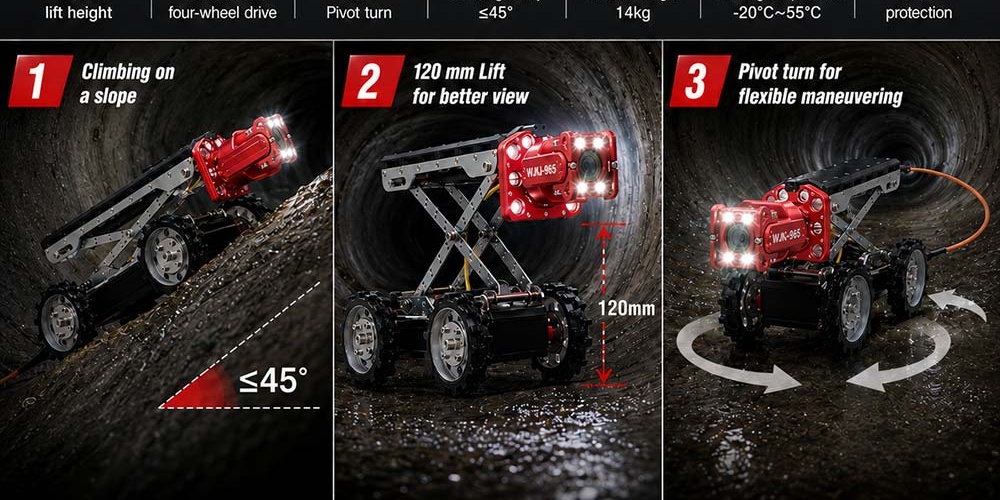

Climbing on a slope (≤45°)| 120 mm Lift for better view| Pivot turn for flexible maneuvering

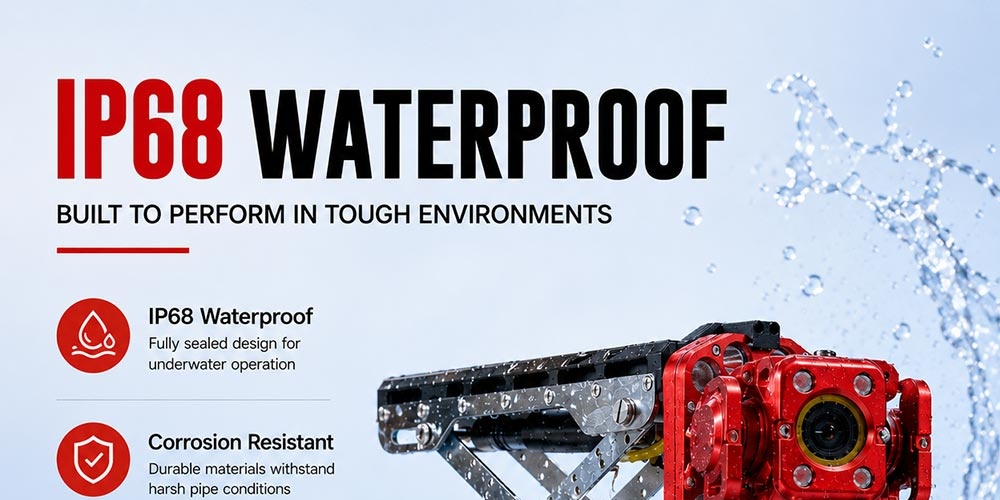

IP68 WATERPROOF
BUILT TO PERFORM IN TOUGH ENVIRONMENTS

• IP68 Waterproof
  Fully sealed design for underwater operation

• Corrosion Resistant
  Durable materials withstand harsh pipe conditions

• Reliable & Durable
  Designed for long-term use in wet environments

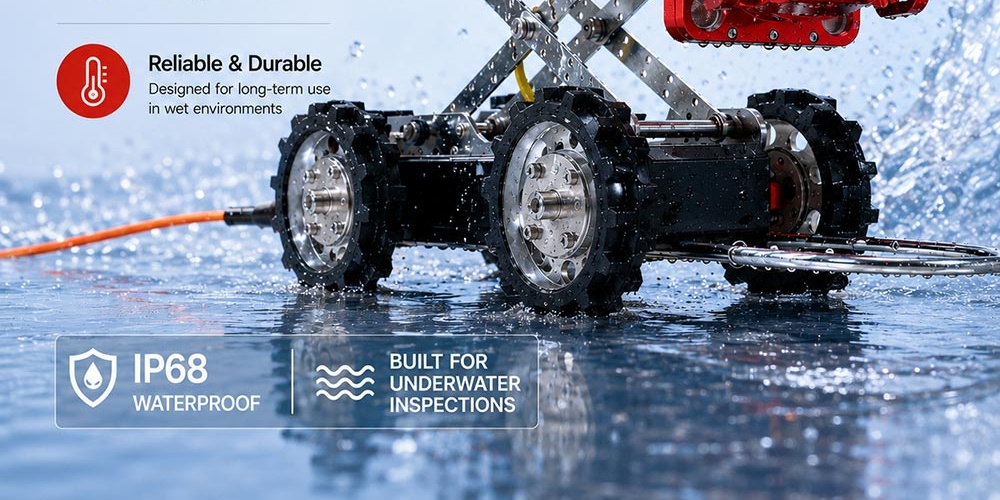

IP68 WATERPROOF
BUILT FOR UNDERWATER INSPECTIONS

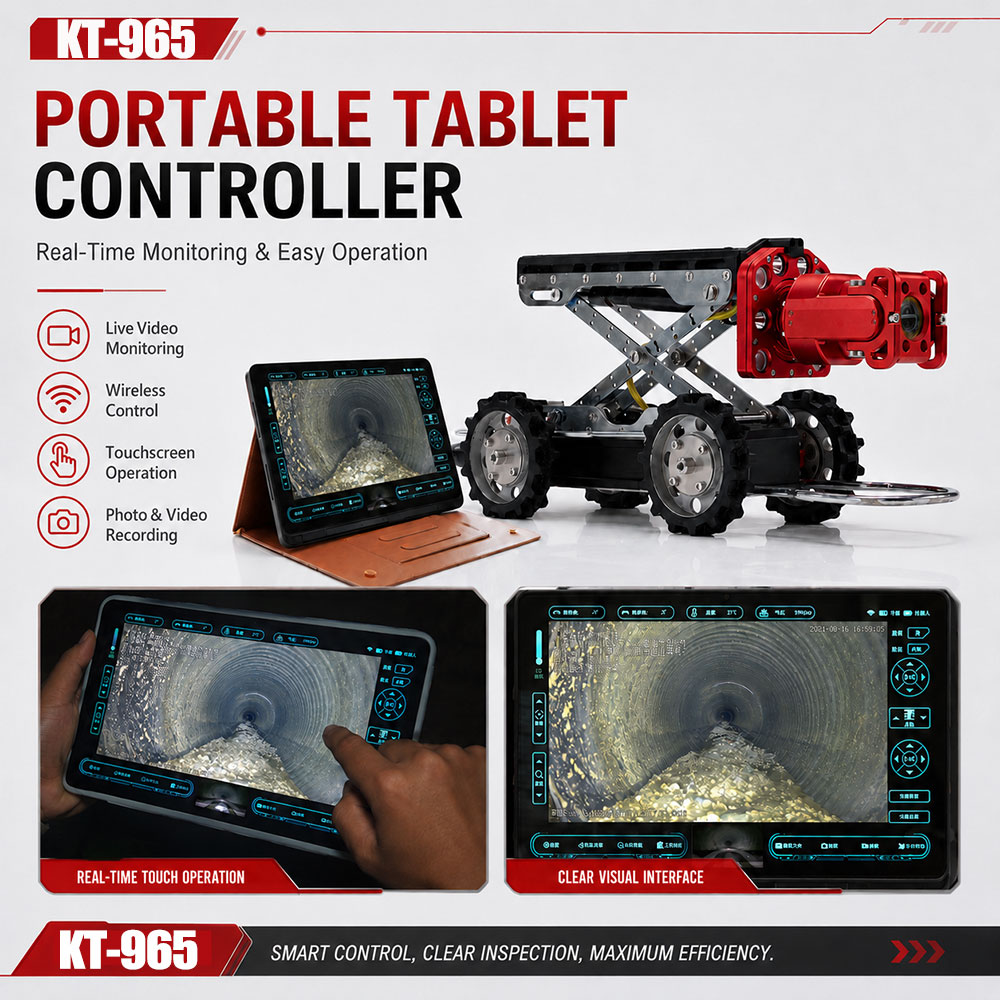

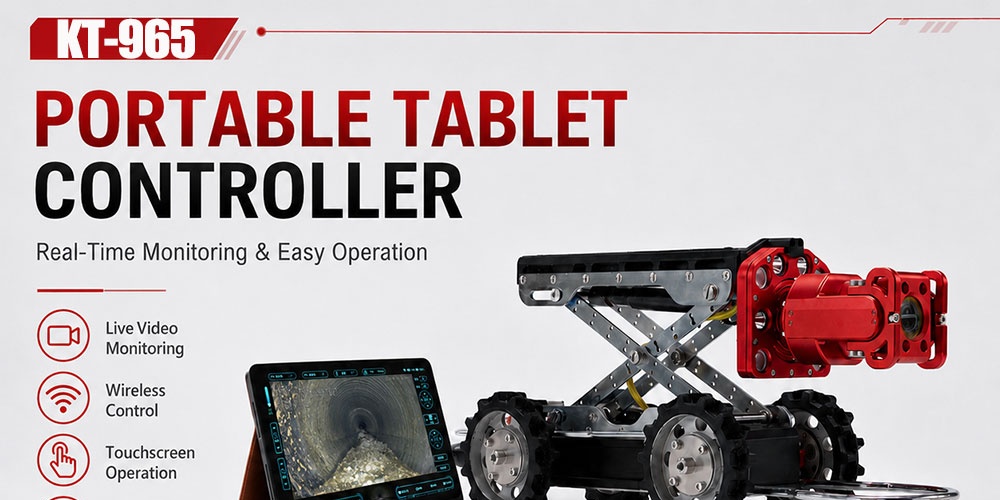

KT-965 PORTABLE TABLET CONTROLLER
Real-Time Monitoring & Easy Operation

Key Features:

• Live Video Monitoring| Wireless Control| Touchscreen Operation| Photo & Video Recording

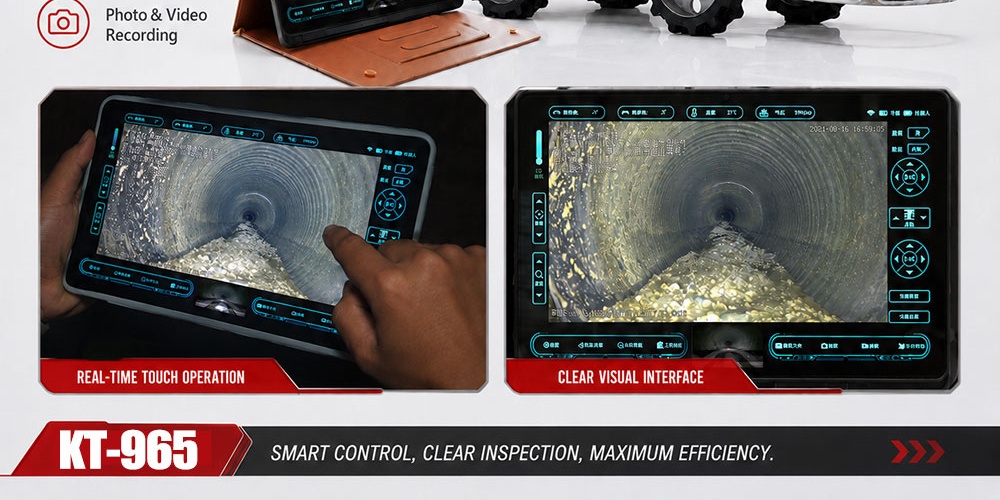

Interface Highlights:

• REAL-TIME TOUCH OPERATION| CLEAR VISUAL INTERFACE

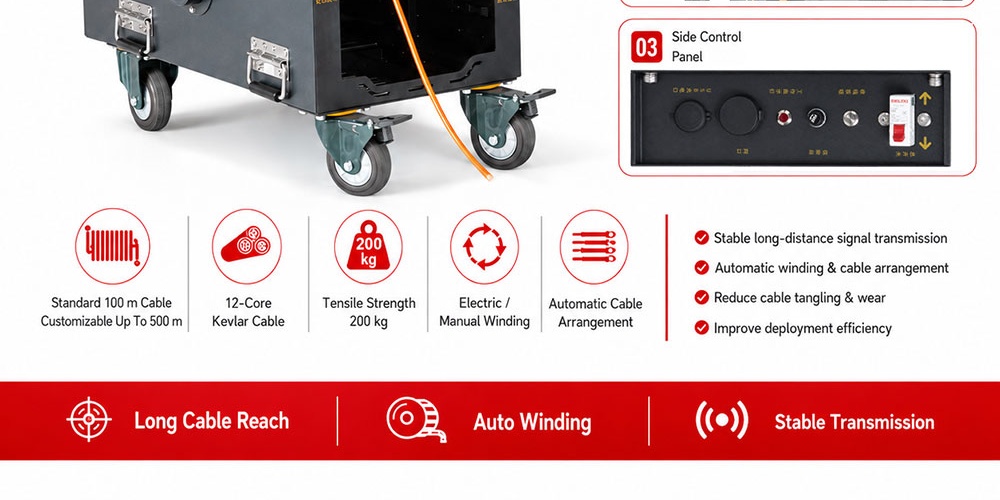

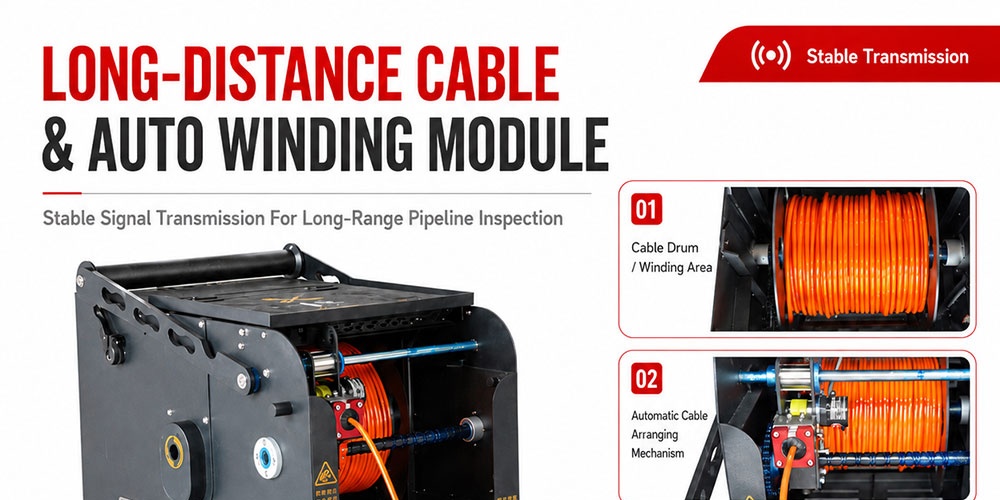

LONG-DISTANCE CABLE & AUTO WINDING MODULE

Stable Signal Transmission For Long-Range Pipeline Inspection

Stable Transmission

 Cable Drum / Winding Area| Automatic Cable Arranging Mechanism| Side Control Panel

Features:

• Standard 100 m Cable, Customizable Up To 500 m

• 12-Core Kevlar Cable

• Tensile Strength 200 kg

• Electric / Manual Winding

• Automatic Cable Arrangement

Benefits:

• Stable long-distance signal transmission| Automatic winding & cable arrangement| Reduce cable tangling & wear| Improve deployment efficiency

          Long Cable Reach | Auto Winding | Stable Transmission

Detect And Record Pipeline Defects
Accurate Identification Of Various Internal Pipeline Defects

Core Capabilities

• High Accuracy Detection| AI Intelligent Recognition| Multi-Type Defect Identification| Automatic Report Generation

Detectable Defects

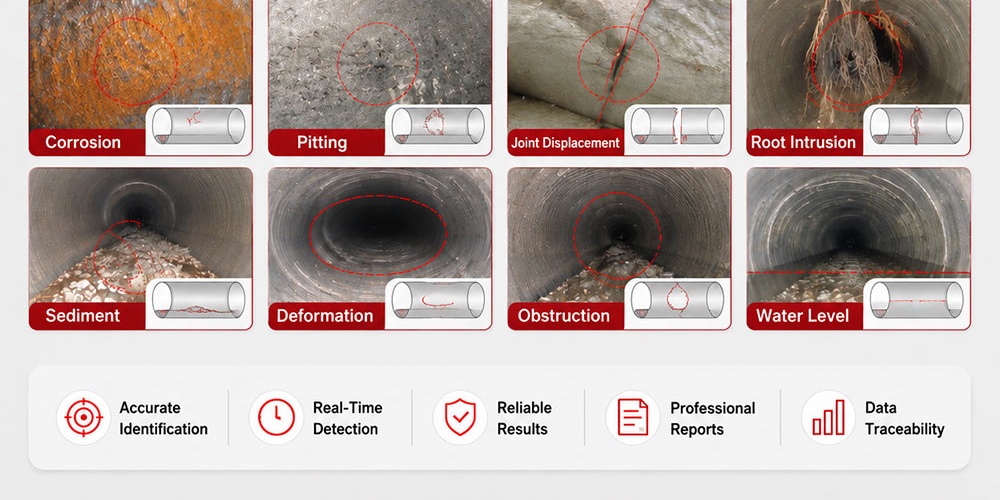

• Crack |Fracture | Hole| Spalling| Corrosion| Pitting| Joint Displacement| Root Intrusion| Sediment| Deformation| Obstruction| Water Level

System Benefits

• Accurate Identification| Real-Time Detection| Reliable Results| Professional Reports| Data Traceability

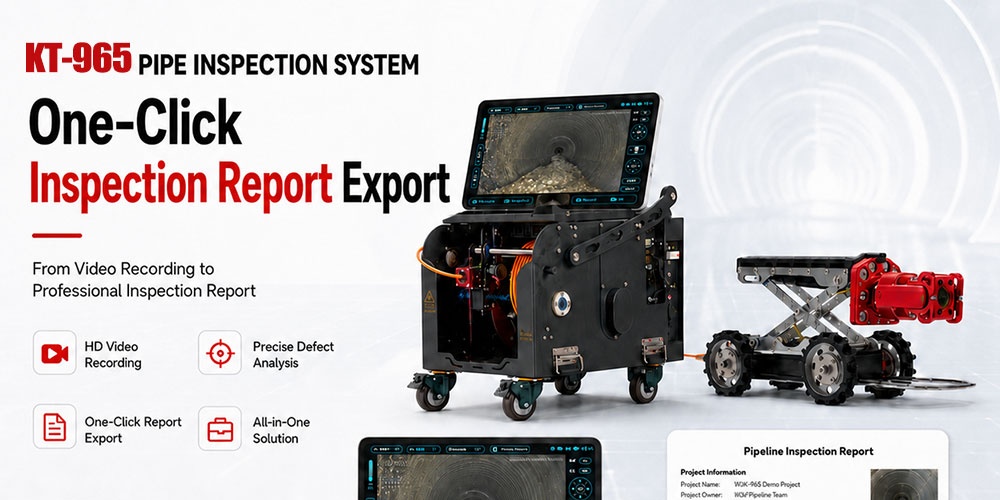

KT-965 PIPE INSPECTION SYSTEM

One-Click Inspection Report Export
From Video Recording to Professional Inspection Report

Key Features:

HD Video Recording|  Precise Defect Analysis|  One-Click Report Export|  All-in-One Solution

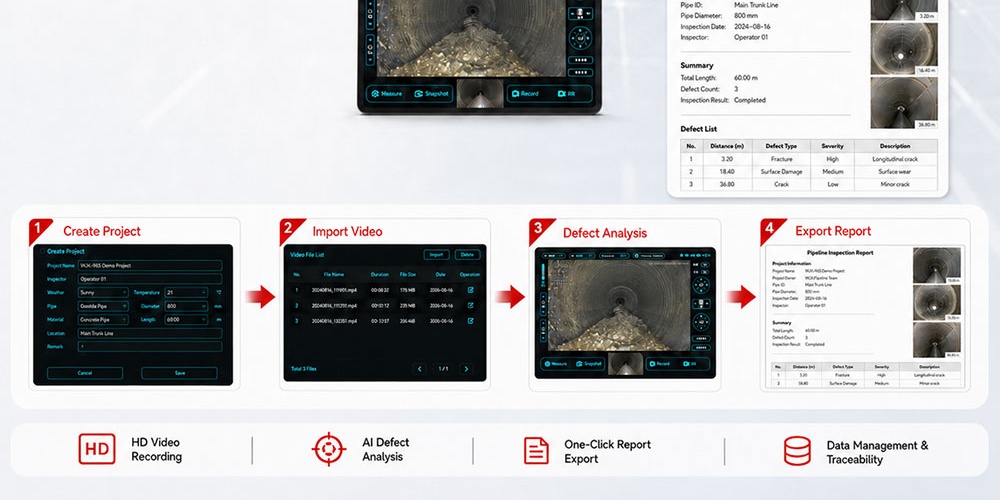

Workflow:

Create Project|  Import Video|  Defect Analysis|  Export Report

Core Capabilities:

HD Video Recording|  AI Defect Analysis|  One-Click Report Export|  Data Management & Traceability

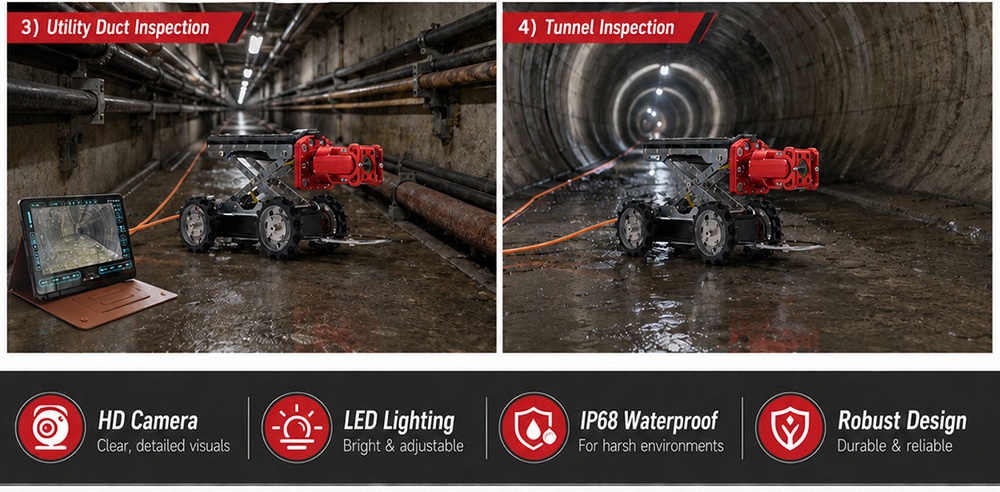

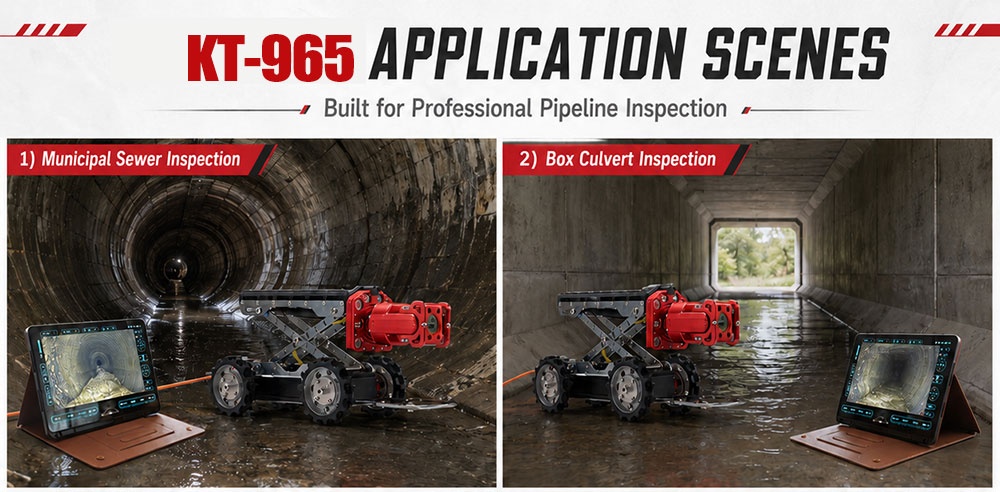

KT-965 APPLICATION SCENES
Built for Professional Pipeline Inspection

Application Scenarios:

Municipal Sewer Inspection|   Box Culvert Inspection|   Utility Duct Inspection|   Tunnel Inspection

Key Features:

• HD Camera
  Clear, detailed visuals

• LED Lighting
  Bright & adjustable

• IP68 Waterproof
  For harsh environments

• Robust Design
  Durable & reliable

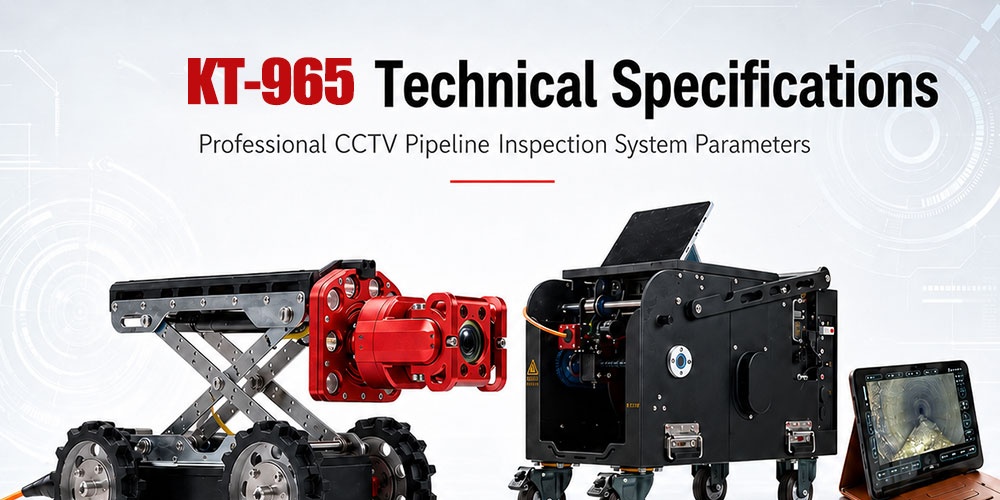

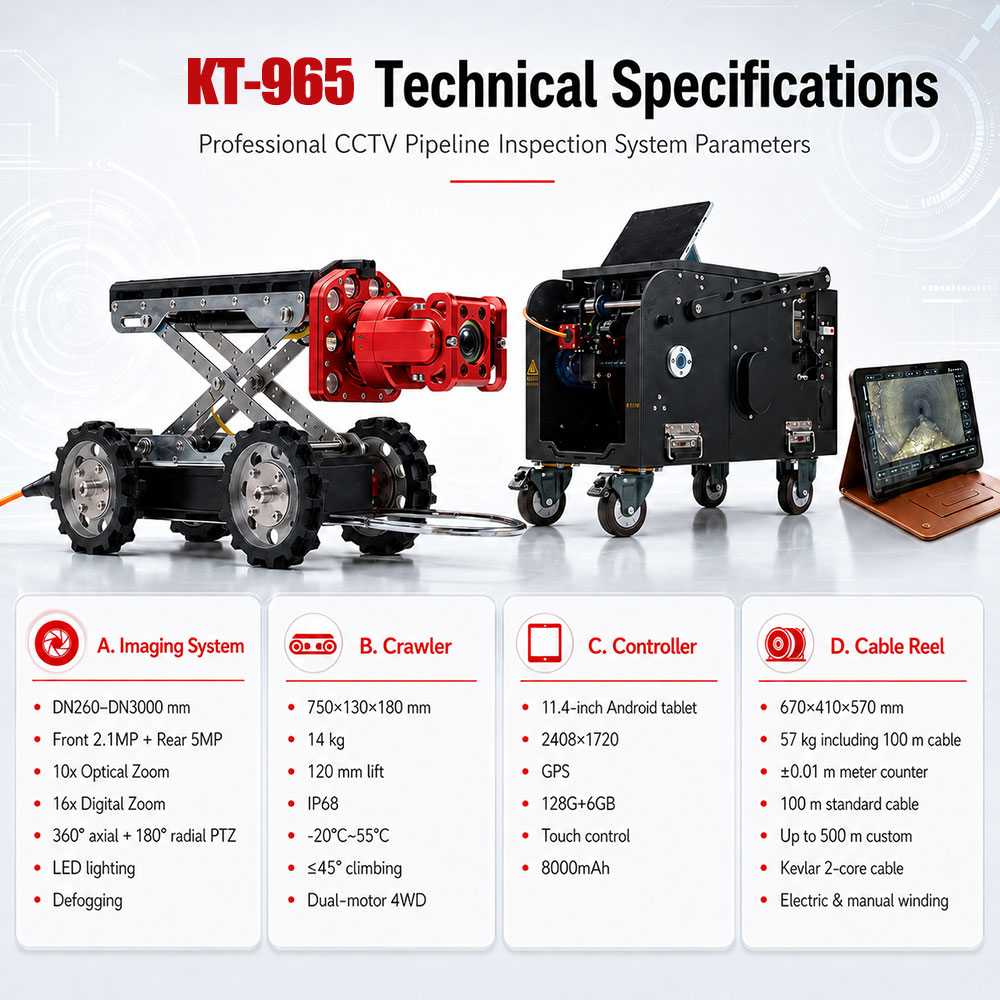

KT-965 Technical Specifications
Professional CCTV Pipeline Inspection System Parameters

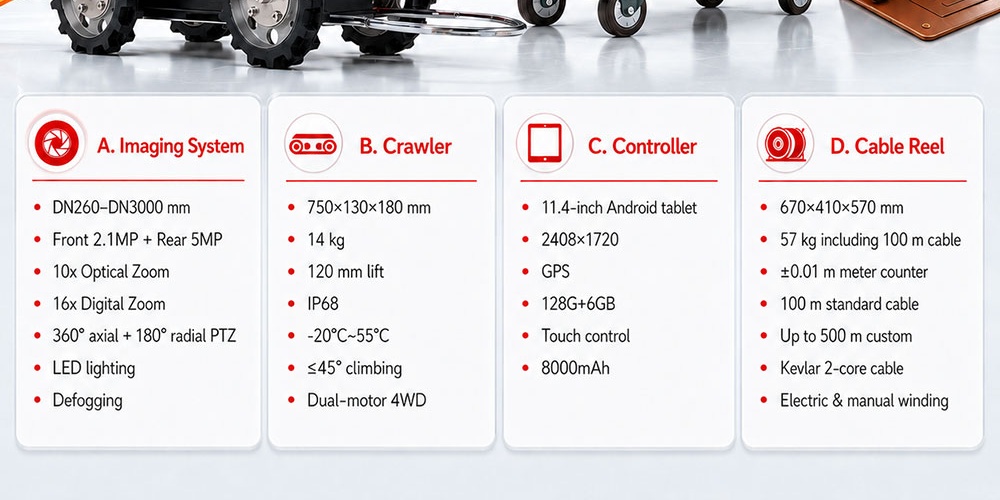

A. Imaging System

• DN260-DN3000 mm

• Front 2.1MP + Rear 5MP

• 10x Optical Zoom

• 16x Digital Zoom

• 360° axial + 180° radial PTZ

• LED lighting

• Defogging

B. Crawler

• 750×130×180 mm

• 14 kg

• 120 mm lift

• IP68

• -20°C~55°C

• ≤45° climbing

• Dual-motor 4WD

C. Controller

• 11.4-inch Android tablet

• 2408×1720

• GPS

• 128G+6GB

• Touch control

• 8000mAh

D. Cable Reel

• 670×410×570 mm

• 57 kg including 100 m cable

• ±0.01 m meter counter

• 100 m standard cable

• Up to 500 m custom

• Kevlar 2-core cable

• Electric & manual winding

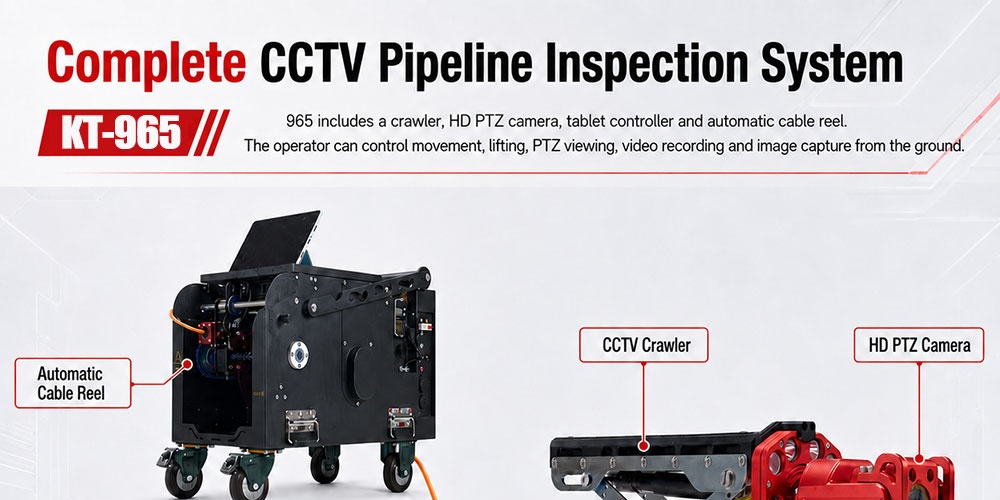

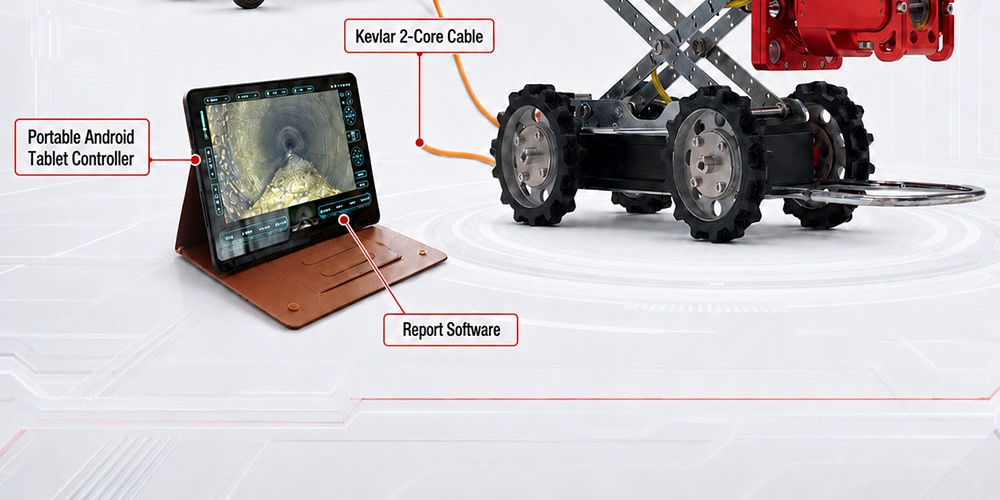

KT-965 Complete CCTV Pipeline Inspection System

965 includes a crawler, HD PTZ camera, tablet controller and automatic cable reel.
The operator can control movement, lifting, PTZ viewing, video recording and image capture from the ground.

Components:

• Automatic Cable Reel

• Portable Android Tablet Controller

• Report Software

• Kevlar 2-Core Cable

• CCTV Crawler

• HD PTZ Camera
