KT-309 Intelligent Concrete Blockage Unclogging Machine: 7500W Power for Concrete-Filled Pipes

For construction and engineering contractors, the most challenging pipe blockages are not ordinary sediment or debris—they are pipes where concrete has fully cured and solidified inside the line.

Once embedded pipes, conduit pipes, drainage pipes, and railway crossing pipes are blocked by cured concrete, conventional flushing methods may not be effective. Excavating and replacing the pipes would significantly increase construction workload and project costs.

To address such heavy-duty blockage conditions, Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd. has developed the KT-309 Intelligent Heavy-Duty Pipe Unclogging Machine. Using a 7500W power system to drive a flexible shaft and alloy steel cutting tools, the machine mechanically drills and breaks down cured concrete inside pipes.

1. What Problems Does the KT-309 Primarily Solve?

The KT-309 is designed for the following types of on-site engineering problems:

Concrete-blocked pipes

Cured cement slurry blockages

Cement particle blockages

Hardened mortar blockages

Embedded pipes that cannot be used for cable pulling

Drainage pipes blocked by concrete

Railway crossing pipe blockages

Tunnel embedded pipe blockages

High-speed railway pipe blockages

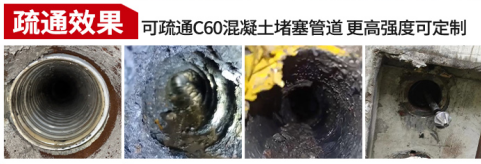

The KT-309 is capable of handling pipes blocked with C60-grade concrete.

2. How Does the KT-309 Unclog Pipes?

The KT-309 does not rely solely on water pressure for flushing. Instead, it uses mechanical drilling and breakdown.

The 7500W motor generates power, transmitted through a flexible shaft to the interior of the pipe, where an alloy steel cutting tool acts directly on the concrete blockage.

The cutting tool rotates continuously, drilling and breaking the cured concrete. Once the debris is fragmented, water flushing or air blowing is used to evacuate the material, depending on site conditions.

This method is particularly suitable for hardened, dense, and completely blocked pipes.

3. Core Configuration of the KT-309

7500W Power
The KT-309 is equipped with a 7500W motor, designed for heavy-duty engineering blockages. Compared with standard pipe unclogging equipment, it is better suited for cured concrete and cement-based hard blockages.

Alloy Steel Cutting Tools
The KT-309 is equipped with multiple sizes and specifications of alloy steel cutting tools. The process involves first drilling a pilot hole, then reaming to expand the opening, breaking the concrete into fragments inside the pipe, which are then flushed out with water flow.

0–2800 rpm Speed Control
The equipment offers adjustable speed from 0 to 2800 rpm. During operation, speed can be adjusted based on blockage hardness, pipe size, and cutting tool load.

22/27/30 mm Shafts
The equipment can be configured with different shaft diameters based on operating conditions. Different shafts correspond to different load ranges, so selection should be based on pipe diameter, blockage length, and blockage hardness.

Intelligent Torque Control
Operators can set torque ranges based on shaft specifications. This maintains sufficient breaking power while controlling shaft load, reducing the risk of shaft kinking, deformation, or breakage.

Adaptive Shaft Protection
When the cutting tool encounters concrete blocks or becomes jammed, the equipment uses torque control and shaft protection technology to reduce abnormal loads. For contractors regularly handling engineering pipe blockages, this reduces the frequency of shaft and consumable replacement.

4. How to Choose Between Water Flushing and Air Flushing?

The KT-309 supports two operating modes:

Water Flushing:
Suitable for pipes where water use is permitted. After the cutting tool breaks the concrete, water flow flushes out the debris. Water-assisted operation is generally recommended for faster performance.

Air Flushing:
Suitable for sites where water introduction is inconvenient or water use needs to be minimized. Compressed air assists in evacuating the broken concrete fragments.

Both modes allow operators to choose based on site conditions.

5. Manual and Remote Control

The KT-309 supports:

Manual operation

Wireless remote operation

For standard working conditions, operation can be performed directly through the control system.

If the pipe is located in tunnels, equipment pits, flooded areas, or other locations where personnel cannot easily access, remote operation can be used.

The equipment is also equipped with an emergency power-off function, capable of automatically cutting power in approximately 0.1 seconds under abnormal conditions.

6. Split-Type Design for Complex Construction Sites

The KT-309 features a separate power unit and control cabinet.

Power unit dimensions: 800 × 336 × 346 mm
Power unit weight: approximately 92.5 kg
Control cabinet dimensions: 440 × 310 × 258 mm
Control cabinet weight: approximately 17 kg

The split-type design reduces the impact of vibration and heat from the 7500W power motor on the control cabinet's electronic components, while also allowing flexible positioning of the power unit and control cabinet based on site space constraints. The power unit is also equipped with a mobility system, suitable for tunnel, bridge, equipment pit, and other engineering environments.

7. KT-309 Applicable Pipe Diameter

Applicable pipe diameter range: Φ6.35–800 mm

By configuring different shafts, cutting tools, and cleaning accessories, the equipment can cover various pipe diameters and operational requirements.

Applicable pipe types include:

Drainage pipes

Embedded pipes

Conduit pipes

Railway crossing pipes

Elevator shaft pipes

Prestressed pipes

Tunnel pipes

Bridge pipes

High-speed railway pipes

8. KT-309 Technical Specifications

Parameters based on KT-309 product documentation. Actual specifications may vary due to product upgrades, configuration changes, or customer-specific options.

9. Which Customers Are Suitable for the KT-309?

The KT-309 is well-suited for the following business types:

Construction Contractors
Handling concrete blockages in embedded pipes, conduit pipes, and drainage pipes.

Municipal Pipeline Contractors
Handling cement, mortar, and concrete that has entered drainage pipes during construction.

Tunnel Engineering Contractors
Handling hard blockages in embedded pipes, railway crossing pipes, and other tunnel infrastructure.

High-Speed Railway and Railway Engineering Contractors
Handling concrete blockages in cable conduits, embedded pipes, and crossing pipes.

Engineering Pipe Unclogging Service Providers
Taking on heavy concrete blockage projects to expand service offerings.

The KT-309's application scenarios cover construction, municipal, high-speed railway, tunnel, and railway engineering.

10. KT-309 Standard Configuration

Standard configuration includes:

KT-309 power unit

KT-309 intelligent control cabinet

20 m quick-connect water hose

8 m flexible shafts (2 pieces)

Alloy steel cutting tools (4 pieces)

Coupling and connection accessories

Data cable

Certificate of conformity

Warranty card

Product manual

For different projects, shafts and cutting tools should be selected based on pipe diameter, concrete strength, blockage length, and whether bends are present.

11. Frequently Asked Questions (FAQ)

Q: What is the KT-309 primarily used for?
A: It is primarily used for engineering pipe blockages caused by hard deposits such as concrete and cement particles, particularly for heavy-duty blockages requiring mechanical breakdown.

Q: Can the KT-309 handle C60 concrete?
A: The product specification explicitly lists C60 concrete-blocked pipes as one of its performance targets. Actual operation should still be evaluated based on pipe diameter, blockage thickness, blockage length, and pipe material.

Q: Can the KT-309 handle very small pipes?
A: The equipment covers a diameter range of Φ6.35–800 mm. However, different diameters require different shafts and cutting tools. Small-diameter projects should be configured based on specific pipe dimensions.

Q: Why does the KT-309 use intelligent torque control?
A: During heavy concrete breakdown, the cutting tool may suddenly jam. Intelligent torque control allows the working range to be set based on shaft specifications, reducing the risk of shaft overload damage while maintaining sufficient breaking power.

About Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd.

Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd., established in 2009, is a subsidiary of Anhui Kuaitong Environmental Technology Group Co., Ltd., specializing in the R&D, manufacturing, and technical services of pipeline cleaning and unclogging equipment.

The company has been recognized as a National High-Tech Enterprise, a Technology-Based SME, and a Training Base of the China Industrial Cleaning Association. Our products are certified under ISO 9001 Quality Management System and EU CE certification. Over the years, we have provided pipeline cleaning, unclogging, and inspection products and solutions to more than 23,000 enterprises worldwide.

Guided by actual construction site conditions, the company provides equipment and accessory selection recommendations based on pipe diameter, deposit type, blockage severity, and working environment.

This document is compiled by the technical team of Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd.
