KT-832 Fresh Air Duct Cleaning Machine: Small-Diameter Duct Cleaning Solution

In many fresh air system cleaning projects, the most challenging part is not the large main ducts, but the fresh air branch ducts in residential buildings, hotels, hospitals, office buildings, and similar structures.

These ducts typically have smaller diameters, some with longer runs, and are concealed above false ceilings where personnel cannot access. Additionally, the ductwork may contain multiple bends, making it difficult for standard cleaning tools to navigate.

To address these fresh air duct cleaning scenarios, Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd. has developed the KT-832 Fresh Air Duct Cleaning Machine. The equipment integrates mechanical brushing, vacuuming, air blowing, forward/reverse rotation, 0–1400 rpm speed control, and manual/remote operation—primarily for mechanized cleaning of fresh air ducts, small ducts, and branch ducts.

The KT-832 is suitable for duct diameters of 50–200 mm, features a 220V/50Hz, 1700W power unit, comes standard with a 15 m × 6 mm flexible shaft, 100 mm and 200 mm cleaning brushes, and includes a 6 m EVA corrugated vacuum hose with dust collection bags and filters. It is designed for professional cleaning companies selecting equipment for small-diameter fresh air systems.

1. Which Fresh Air Duct Cleaning Projects Is the KT-832 Suitable For?

When selecting fresh air duct cleaning equipment, the duct characteristics of the project should first be assessed.

If the site presents the following conditions:

Small duct diameters

Personnel cannot enter ducts

Ducts located above false ceilings

Large number of branch ducts

Ducts with bends

Long-term dust accumulation on duct walls

Need for simultaneous dust control during cleaning

Operators need to control equipment from a distance

Then the KT-832 is a suitable choice.

The KT-832 is specifically designed for fresh air ducts, small ducts, and branch ducts, with an applicable diameter range of 50–200 mm. The standard 15 m, 6 mm diameter flexible shaft provides adequate reach for longer fresh air branch duct projects.

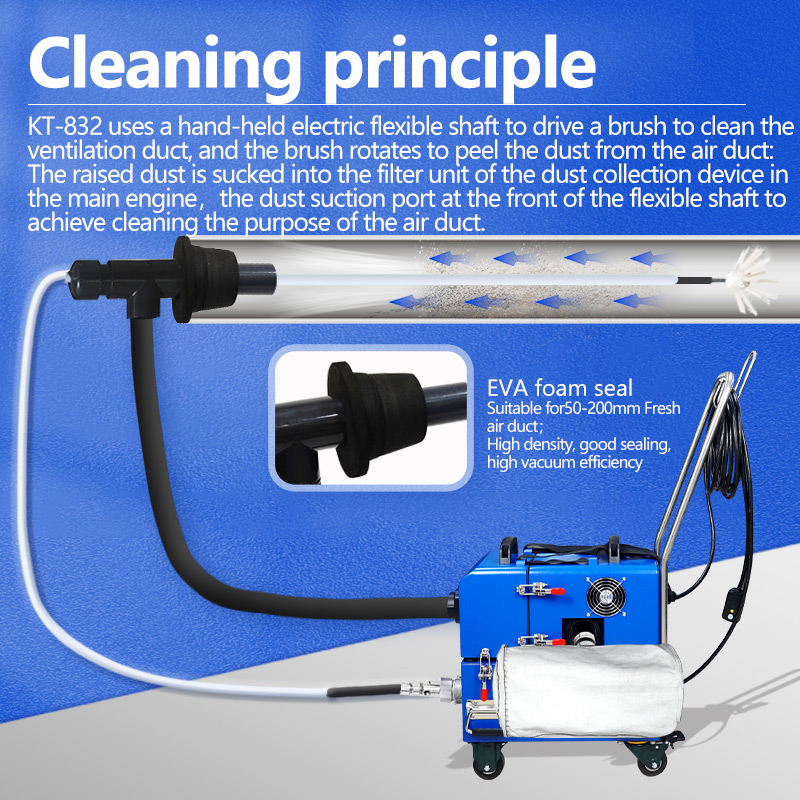

2. How Does the KT-832 Clean Fresh Air Ducts?

The KT-832 uses a mechanical rotary cleaning method.

An appropriately sized cleaning brush is installed on the cleaning assembly. The power unit drives the brush head to rotate, and after entering the fresh air duct, the brush contacts the duct walls to mechanically remove accumulated dust.

During cleaning, the vacuum function can be used to promptly collect loosened dust based on site conditions. For locations where vacuuming is inconvenient, the air blowing function can assist with cleaning.

The basic operational process is:

Brush enters duct → Rotary cleaning → Removes wall dust → Simultaneous vacuuming/assisted blowing → Duct cleaning completed

The KT-832 features a 1700W power unit with a speed range of 0–1400 rpm (stepless), adjustable for different operating conditions.

3. Why Does the KT-832 Feature 0–1400 rpm Speed Control?

Different fresh air ducts have different dust accumulation conditions.

Some ducts have only light surface dust, while others have not been cleaned for extended periods and have developed thick dust layers.

The KT-832 offers a 0–1400 rpm stepless speed range, allowing cleaning speed to be adjusted based on actual conditions.

Key selection considerations:

Light dust accumulation: reduce cleaning speed appropriately

Thick dust accumulation: increase cleaning speed based on site conditions

Different brush heads: adjust speed according to brush specifications

Different duct materials: select appropriate operating parameters

This prevents the equipment from operating at a single speed, providing greater operational flexibility.

4. What Is the Practical Value of Forward/Reverse Rotation?

For straight ducts, single-direction rotation is sufficient for basic brushing.

However, for ducts with bends or multiple elbows, the force on the brush head changes as it passes through the duct.

The KT-832 supports forward/reverse rotation.

Operators can change the rotation direction based on actual cleaning conditions, allowing the brush head to act on the duct wall from different angles.

This is particularly valuable for fresh air branch ducts with bends, improving operational flexibility.

The equipment comes standard with a 15 m × 6 mm flexible shaft, capable of reaching deep into fresh air ducts within the applicable diameter range.

5. Why Does the KT-832 Include Both Vacuuming and Air Blowing?

Fresh air duct cleaning is not just about "brushing clean."

If loosened dust is not promptly collected after brushing, it may remain inside the duct.

Therefore, the KT-832 incorporates a vacuuming function. During cleaning, loosened dust can be collected simultaneously, reducing redundant work.

The equipment comes standard with a 6 m vacuum hose made of EVA corrugated material, and includes two sets of dust collection bags and filters for dust collection based on site conditions.

Additionally, for locations with loose dust accumulation or where vacuuming is limited, the air blowing function can assist in pushing dust out.

This combination can be summarized as:

Brushing + Vacuuming + Air Blowing in One

This is one of the key differences between the KT-832 and simple mechanical brushing equipment.

6. How to Choose Between Manual and Remote Operation?

The KT-832 supports manual/remote dual-mode operation.

Manual operation
Suitable for scenarios where the power unit is close to the operator and easily accessible.

Remote operation
If the equipment is positioned above a false ceiling, at height, or at a distance, remote control can be used.

For batch fresh air duct cleaning projects in hotels, hospitals, and office buildings, remote operation reduces the need for operators to frequently return to the power unit for control.

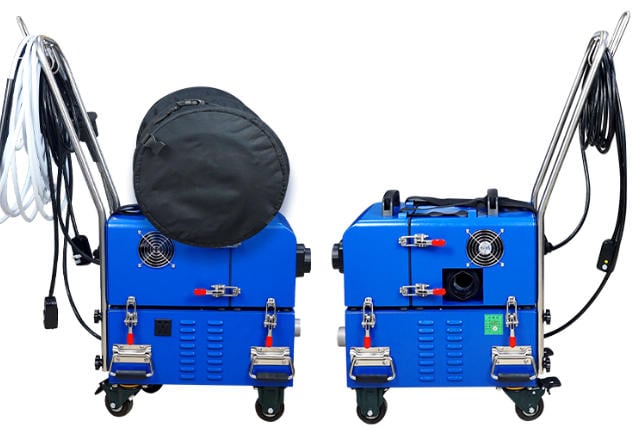

The equipment includes a remote control. The power unit dimensions are 720 × 320 × 1000 mm, weighing approximately 34 kg. In practice, equipment mobility should also consider site access, floors, and working space.

7. Which Duct Types Are Suitable for the KT-832?

The KT-832 is primarily suitable for:

1. Residential Fresh Air Ducts
Residential fresh air branch ducts have small diameters, with some located above false ceilings—ideal for flexible shaft mechanical cleaning.

2. Hotel Fresh Air Ducts
Hotels have numerous fresh air branch ducts in guest rooms, corridors, and public areas, requiring batch cleaning efficiency.

3. Hospital Fresh Air Ducts
Hospital fresh air systems require high maintenance standards, with numerous branch ducts in areas that are difficult for personnel to access.

4. Office Building Fresh Air Ducts
Fresh air ducts in office buildings are typically concealed above false ceilings—cleaning brushes can reach deep into ducts for mechanical cleaning.

5. Schools and Commercial Buildings
Suitable for periodic cleaning and maintenance of small fresh air branch ducts and similar piping.

Based on equipment specifications, the 50–200 mm diameter range is a key reference for KT-832 project selection.

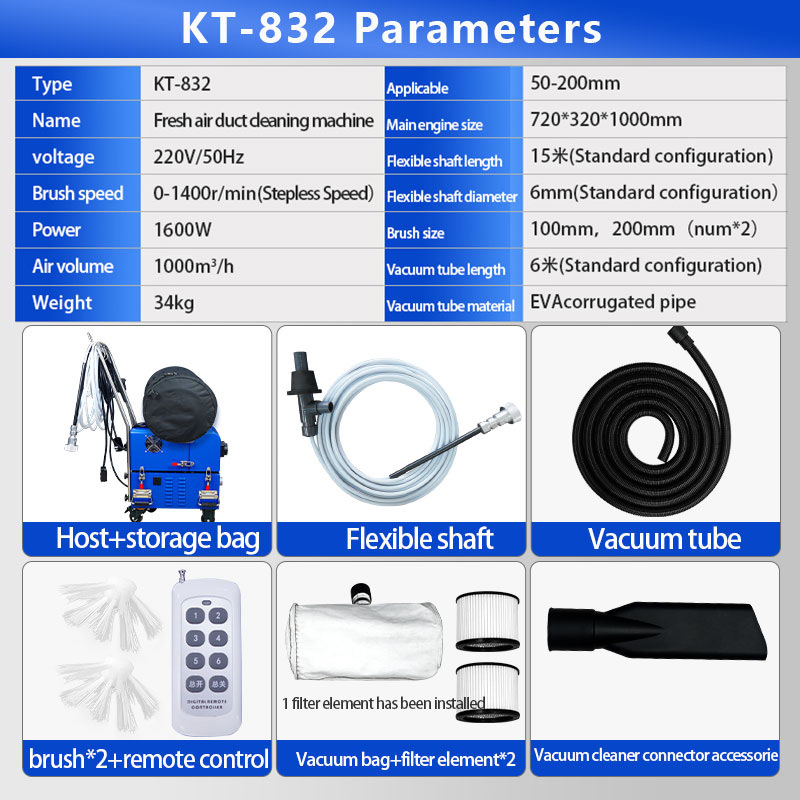

8. KT-832 Product Specifications

Specifications based on KT-832 product documentation.

9. What Information Should Be Confirmed Before Purchasing the KT-832?

If you are a central air conditioning cleaning company, property maintenance company, or fresh air system cleaning service provider, the following information should be confirmed before selecting the KT-832:

① Duct type
Residential fresh air ducts, commercial building fresh air ducts, or other small ventilation ducts.

② Duct dimensions
Confirm whether the primary cleaning duct diameter falls within the 50–200 mm range.

③ Duct length
Confirm whether the 15 m standard shaft meets actual cleaning distance requirements.

④ Number of bends
If the duct has multiple bends, brush head and shaft entry capability should be a key consideration.

⑤ Dust accumulation
Determine whether it is light surface dust or long-term accumulated dust.

⑥ Dust handling method
If significant dust will be generated during cleaning, vacuum capacity and accessory configuration should be considered.

⑦ Working position
If the power unit is far from the work point, the convenience of remote operation should be evaluated.

This information helps determine whether the KT-832 is suitable for the project, rather than selecting based solely on equipment name.

10. How to Choose Between the KT-832 and Other Fresh Air Duct Cleaning Equipment?

Anhui Kuaitong offers various cleaning equipment for different duct configurations.

For primarily 50–200 mm small-diameter fresh air ducts, branch ducts, and ducts above false ceilings, the KT-832 is the appropriate choice.

If the project involves ducts under 200 mm with multiple tight bends, more flexible compact equipment may be considered. The KT-927 is a flexible cleaning solution specifically designed for fresh air ducts under 200 mm with sharp bends.

If the project involves large main ducts and long-distance ventilation ducts, the KT-928 long-distance shaft cleaning equipment (with shafts up to 22 m or 45 m) should be considered.

Therefore, the core of equipment selection is not "which machine is best," but which machine best matches the site's duct diameter, distance, bend severity, and dust accumulation conditions.

11. KT-832 Core Advantages

Based on product configuration and application scenarios, the KT-832 features:

Integrated Brushing and Vacuuming
Combines brushing and vacuuming, with standard 6 m EVA corrugated vacuum hose, dust collection bags, and filters to reduce redundant work.

Air Blowing Assist
Additional dust handling method for different site conditions.

0–1400 rpm Speed Control
Adjustable cleaning speed based on dust accumulation and cleaning accessories.

Forward/Reverse Rotation
Adapts to different duct configurations and cleaning directions.

15 m Flexible Shaft
Standard 15 m × 6 mm shaft suitable for fresh air branch ducts of significant length.

50–200 mm Diameter Range
Clear equipment applicability for professional cleaning company project selection.

1000 m³/h Airflow
Supports vacuum system for dust collection during mechanical cleaning.

Manual + Remote Operation
Suitable for false ceiling, elevated, and space-constrained work environments.

Multi-Specification Accessories
Includes 100 mm and 200 mm brushes, spherical brushes, vacuum hoses, and other cleaning accessories for various fresh air ducts.

These features are designed around the practical challenges of small-diameter fresh air ducts being difficult to access, difficult to clean, and difficult to manage dust.

12. Frequently Asked Questions (FAQ)

Q: Can the KT-832 clean central air conditioning ducts?
A: It can, but its primary application is for 50–200 mm fresh air ducts, small ducts, and branch ducts. For large central air conditioning main ducts, equipment suited to duct dimensions and access distance should be selected.

Q: Is the KT-832 suitable for hotel fresh air ducts?
A: Yes. Hotel fresh air branch ducts in guest rooms, corridors, and public areas are typical application scenarios for the KT-832.

Q: Does the KT-832 require personnel to enter the duct?
A: No. The equipment performs mechanical cleaning from outside the duct using brushes and accessories inserted into the duct—designed for ducts that personnel cannot enter.

Q: Can the KT-832 remove dust from ducts?
A: Yes. The equipment uses mechanical brushing to remove wall dust and can use vacuuming or air blowing to handle loosened dust.

Q: Is the KT-832 speed adjustable?
A: Yes. The equipment supports 0–1400 rpm stepless speed control.

Q: How long is the KT-832 flexible shaft?
A: The KT-832 comes standard with a 15 m long, 6 mm diameter flexible shaft.

Q: Can the KT-832 be controlled remotely?
A: Yes. The equipment supports both manual and remote operation, suitable for false ceiling, elevated, and space-constrained environments.

About Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd.

Anhui Kuaitong Pipeline Cleaning Technology Co., Ltd., established in 2009, is a subsidiary of Anhui Kuaitong Environmental Technology Group Co., Ltd., specializing in the R&D, manufacturing, and technical services of pipeline cleaning equipment. The company has been recognized as a National High-Tech Enterprise, a Technology-Based SME, and a Training Base of the China Industrial Cleaning Association. Our products are certified under ISO 9001 Quality Management System and EU CE certification.

The company's main product categories include central air conditioning cleaning equipment, boiler pipe cleaning equipment, industrial pipe unclogging machines, pipeline inspection equipment, kitchen exhaust duct cleaning equipment, and cleaning accessories/consumables—providing pipeline cleaning equipment and technical support for professional cleaning companies, property maintenance firms, and industrial customers.

For fresh air duct, small duct, and branch duct cleaning requirements, the KT-832 combines 1700W power, 0–1400 rpm stepless speed control, 50–200 mm applicable diameter, 15 m shaft, 1000 m³/h airflow, and integrated brushing/vacuuming/air blowing functions to provide a clear equipment selection option for fresh air duct cleaning projects.
